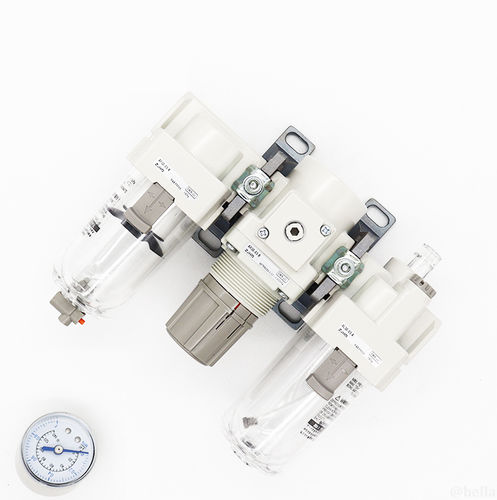

Air filter-regulator-lubricator AC30-03-B

compressed airfor compressorspolycarbonate

Short description

• Combination air filter, regulator and lubricator for industrial pneumatic systems
• Model ZJHD AC30-03-B — body size 30 mm, Rc thread, port 3/8
• Polycarbonate bowl; element and bowl in one piece for hand replacement; reduced maintenance footprint

Description
The ZJHD AC30-03-B integrates filtration, pressure regulation and lubrication in a compact assembly suitable for industrial compressed air installations. It provides stable downstream pressure and controlled lubrication to pneumatic actuators, valves and control equipment. The one-piece element and bowl enable quick manual replacement to minimize downtime and space required for maintenance.

Key features

• Integrated filter + regulator + lubricator (AC series)
• Improved visibility and environmental resistance of the bowl
• Element and bowl designed as one unit for easy replacement by hand
• Reduced required maintenance space
• Available options: without auto drain; without pressure gauge
• Lubricator variants: without drain cock (standard a) or with drain cock (semi-standard b)
• Semi-standard b: relieving type, flow direction Left to Right
• Provision for name plate and caution plate with MPa units

Technical specifications

• Model designation: AC (Air Filter + Regulator + Lubricator)
• Commercial model: AC30-03-B
• Body size: 30 mm
• Thread type: Rc
• Port size: 3/8 (marked as 3)
• Pressure setting range (semi-standard a): 0.05 to 0.85 MPa
• Bowl material: Polycarbonate
• Lubricator: without drain cock (standard a) / with drain cock (semi-standard b)
• Options: without auto drain; without pressure gauge
• Flow direction (semi-standard b): Left to Right
• Relieving type available (semi-standard b)
