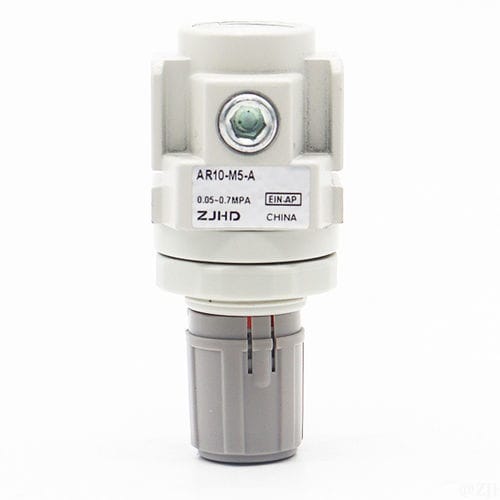

Air pressure regulator AR10-M5-A

for compressed airpneumaticrelieving

Short description

• ZJHD pneumatic regulator AR10-M5-A
• Energy-saving regulator
• AR10-A to AR40-A series available

Product overview
Compact pneumatic pressure regulator designed for industrial air systems. The AR10-M5-A is part of ZJHD's AR series, offering multiple body sizes and selectable options for drain, pressure gauge and set nut to suit different installation and control requirements.

Technical table

• Model: AR10-M5-A
• Series: AR (Regulator)
• Body size: 10 mm
• Thread type: M5
• Option A: Without auto drain
• Option B: Without pressure gauge; Without set nut
• Semi-standard A: C = 0.05 to 0.7 MPa (X406: 0.05 to 0.4 MPa)
• Semi-standard B: Relieving type; Flow direction left to right; Downward mounting; Name plate and pressure gauge units: MPa

Technical specifications

• SKU: AR10-M5-A
• Brand: ZJHD
• Commercial model/series: AR series (AR10-A to AR40-A)
• Body size: 10 mm
• Thread type: M5
• Options: Without auto drain; Without pressure gauge; Without set nut
• Semi-standard settings: C = 0.05 to 0.7 MPa; X406 = 0.05 to 0.4 MPa
• Type: Relieving
• Flow direction: Left to right
• Mounting orientation: Downward
• Pressure gauge units on name plate: MPa
• Function: Pneumatic regulator, energy saving
