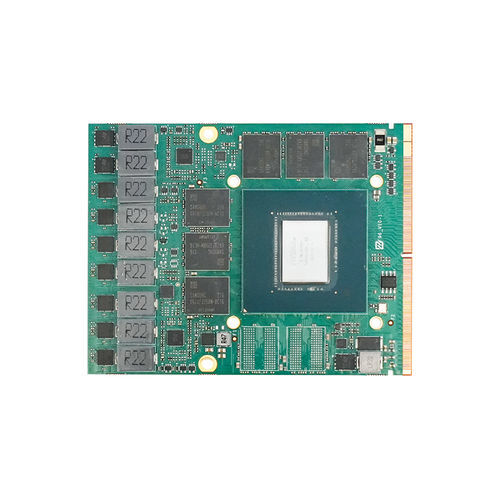

PCI Express graphics card MM3060B6-12Gtype-BMXM3.1NVIDIA GeForce
Add to favorites
Compare this product
Characteristics
- Bus standard
- PCI Express
- Form factor
- type-B, MXM3.1
- Graphic chipset
- NVIDIA GeForce
- Memory
- GDDR6
- Operating system
- Linux, Windows 10, Windows 11
- Interface Type
- DisplayPort, HDMI
- Memory size
12 GB
Description
Graphics dock - 1320MHz / 1882MHz (Boost)
Memory Size - 12G 192bit GDDR6
Memory Clock - 1875MHz (15.0 Gbps)
Memory Bandwidth - 360.0GB/S
Number of Output Channel - 4
Board Power - 120W (Option 90W)
VIN Range - DC 12-19V, 3.3V 8t 5V; +/-5%
Operating Temperature - 0~45‘C
Storage Temperature - -20-75‘C
Operating Humidity - 0~95% (non-condensing)
Storage Humidity - 10-90%
Render Config -
Shader Processing Units - 3584
Tensor Core - 112
RTCore - 28
TMUs - 112
ROPs - 48
SM Count - 28
L1 Cache - 128KB (per SM)
L2 Cache - 3MB
Theoretical Peformance -
Pixel Rate - 85.30GPixel/s
Texture Rate - 199.0GTexel/s
Single Précision FLOPS(aida64) - 13863GFLOPS
Double Précision FLOPS
