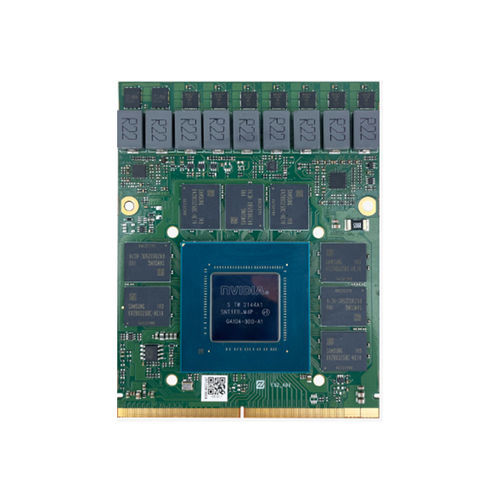

MXM3.1 graphics card MD3070B6-8GPCI Expresstype-BNVIDIA GeForce
Add to favorites
Compare this product
Characteristics
- Bus standard
- PCI Express
- Form factor
- type-B, MXM3.1
- Graphic chipset
- NVIDIA GeForce
- Memory
- GDDR6
- Operating system
- Linux, Windows 11
- Interface Type
- DisplayPort, HDMI
- Memory size
8 GB
Description
Graphics dock - 1500MHz / 1725MHz (Boost)
Memory Clock - 1750MHz (14.0 Gbps)
Memory Bandwidth - 448.0GB/S
Number of Output Channel - 4
Board Power - 150W (Option 120W)
VIN Range - DC 12-19V, 3.3V 8t 5V; +/-5%
Operating Temperature - 0-45‘C
Storage Temperature - -20~75‘C
Operating Humidity - 0~95% (non-condensing)
Storage Humidity - 10-90%
Render Config -
Shader Processing Units - 5888
Tensor Core - 184
RTCore - 46
TMUs - 184
ROPs - 96
SM Count - 46
L1 Cache - 128KB (per SM)
L2 Cache - 4MB
Graphics Features -
DirectX - 12 Ultimate (12_2)
OpenGL - 4.6
OpenCL - 3.0
Vulkan - 1.3
Shader Model - 6.7
CUDA - 8.6
Video Playback - H.265, VC1, MPEG2 1080P
