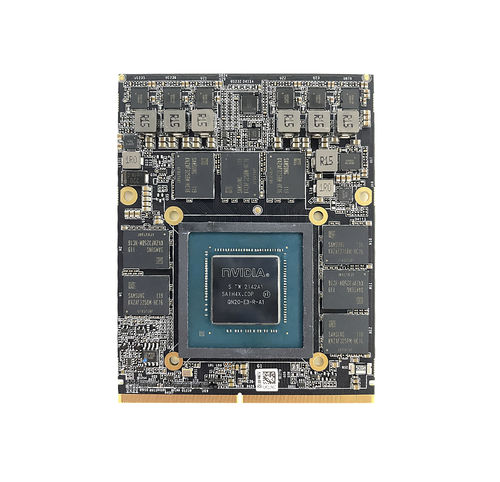

PCI Express graphics card MMA4500B6 16G

type-BMXM3.1NVIDIA® Quadro

The MMA4500B6 module features advanced NVIDIA® Ampere™ GPU technology in MXM 3.1 Type form factor. Its powerful, compact, slim and stably designed, making it suitable under critical mission environment. MMA4500B6 supports 4 DP 1.4b displays, offering a flexible solution for medical, machine vision, gaming and multiple applications. Graphics Clock - 1020MHz / 1575MHz (Boost) Memory Clock - 2000MHz (16.0 Gbps) Memory Bandwidth - 512.0GB/S Max Resolution - 7680x4320@120Hz Number of Output Channel - 4 Board Power - 130W (Option 80W) VIN Range - DC 12-19V, 3.3V 8t 5V; +/-5% Operating Temperature - 0~45°C (Option -20’C) Storage Temperature - -20~75°C Operating Humidity - 0-95% (non-condensing) Storage Humidity - 10-90% Render Config - Shader Processing Units - 5888 Tensor Core - 184 RT Core - 46 TMUs - 184 ROPs - 96 SM Count - 46 L1 Cache - 128KB (perSM) L2 Cache - 4MB Theoretical Peformance - Pixel Rate - 116.6GPixel/s Texture Rate - 223.6GTexel/s Single Précision FLOPS(aida64) - 19352GFLOPS Double Précision FLOPS
