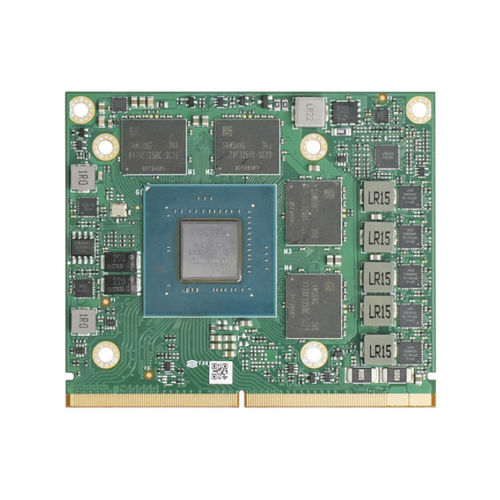

PCI Express graphics card MM4060A6-8G

MXM3.1NVIDIA GeForceNVIDIA® Ada Lovelace

Graphics Clock - 1140MHz / 1470MHz (Boost) Memory Clock - 2000MHz (16.0 Gbps) Memory Bandwidth - 256.0GB/S Single Max Resolution - DP: 7680x4320@120Hz HDMI: 7680x4320@60Hz Number of output Channel - 4 Board Power - 60W VIN Range - DC 12-19V, 3.3V 8t 5V; +/-5% Operating Temperature - 0~45‘C(Option -20‘C) Storage Temperature - -20~75'C Operating Humidity - 0~95% (non-condensing) Storage Humidity - 10-90% Render Config - Shader Processing Units - 3072 Tensor Core - 96 RT Core - 24 TMUs - 96 ROPs - 48 SM Count - 24 L1 Cache - 128KB (perSM) L2 Cache - 32MB Theoretical Peformance - Pixel Rate - 70.56GPixel/s Texture Rate - 141.1GTexel/s Single Précision FLOPS(aida64) - 12229GFLOPS Double Précision FLOPS(aida64) - 192.7GFLOPS Graphics Features - DirectX - 12 Ultimate (12_2) OpenGL - 4.6 OpenCL - 3.0 Vulkan - 1.3 Shader Model - 6.7 CUDA - 8.9 Video Playback - H.265, VC1, MPEG2 1080P
