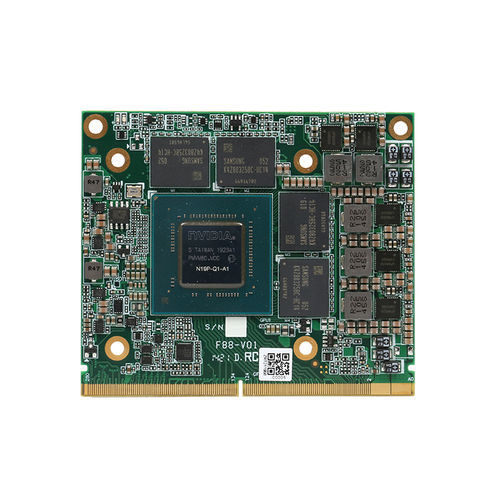

PCI Express graphics card MMT1000A6-4G

type-AMXM3.1NVIDIA® Quadro

Graphics Clock - 1395 MHz / 1650MHz (Boost) Memory Clock - 1500MHz (12.0 Gbps) Memory Bandwidth - 192.0GB/S Single Max Resolution - 7680x4320@ 120Hz Number of Output Channel - 4 Board Power - 50W (Option 36W) VIN Range - DC 12-19V, 3.3V & 5V; +/-5% Operating Temperature - 0~45‘C (Option -20*C) Storage Temperature - -20-75'C Operating Humidity - 0-95% (non-condensing) Storage Humidity - 10-90% Render Config - Shader Processing Units - 896 TMUs - 56 ROPs - 32 SM Count - 14 L1 Cache - 64KB (per SM) L2 Cache - 1024KB Theoretical Peformance - Pixel Rate - 52.80GPixel/s Texture Rate - 92.40GTexel/s Single Précision FLOPS(AiDA64) - 3458GFLOPS Double Précision FLOPS(AiDA64) - 1Q7.7GFLOPS Graphics Features - DirectX - 12 Ultimate (12_1) OpenGL - 4.6 OpenCL - 3.0 Vulkan - 1.3 Shader Model - 6.7 CUDA - 7.5 Video Playback - H.265, VC1, MPEG2 1080P
