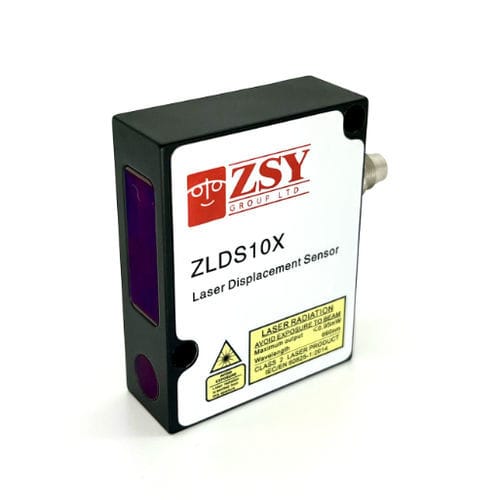

Laser triangulation distance sensor ZLDS10X series

analognon-contactcompact

The sensors are intended for non-contact measuring and checking of position, displacement, dimensions, surface ' profile,deformation, vibrations, sorting and sensing of technological objects as well as for measuring levels of liquid and bulk materials. The series includes a series of sensors with the measurement range, from 2 to 2500 mm and the base distance from 10 to 420 mm. Custom-ordered configurations are possible with parameters different from those shown below. -Main features- 26 models of: Available with Red or Blue laser diodes; Varied diode powers for indoor or outdoor applications; Binocular sensors for laser scanning. main parameter - - ZLDS10Xpic Laser_Triangulation_Sensors_ZLDS10X_DataSheet.pdf Measuring ranges, mm: - from 2 to 1250 Linearity, % of F.S: - ±0.05 Measuring rate, kHz: - 9.4 Size, mm: - 65x57x20 Weight, gram: - 100 ZLDS100/HS Series – High Speed Triangulation Sensors 25 models of: Universal, high-speed laser sensor in compact case Available in Red and Blue diode wavelengths Ideal for capturing fast events and road profiling – Specialized Laser Sensors for Pavement Profile and Texture Measurement 6 models of: round laser spot of<1 mm diameter high resistance to solar radiation stable operation on wet surfaces -Application area- The sensors are intended for non-contact measuring and checking of position, displacement, dimensions, surface profile, deformation, vibrations, sorting and sensing of technological objects as well as for measuring levels of liquid and bulk materials. -Measuring principle- Operation of the sensors is based on the principle of optical triangulation.
