Mesa de coordenadas linear FSK40IS-DV

XYZmotorizadacom motor linear

Short Description

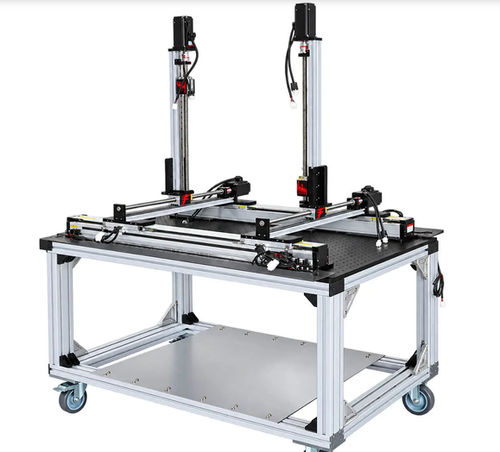

This dual-gantry 3-axis test platform for university labs features X linear motor and Y/Z FsK40 ball screw modules. Zero-backlash scanning, rigid positioning and modular optical breadboard design support dual-probe comparative tests for material characterization, NDT and field mapping.

Configuration

• Custom stroke: X-axis 600 mm, Y-axis 500 mm, Z-axis 500 mm
• Repeat positioning accuracy: ±0.02 mm

Series data (listed on page)

• Series: FSK40IS-DV
• Stroke Range: 50mm-1000mm
• Position Accuracy: 0.03mm
• Max Speed: 255mm/s
• Max Load: 25kg
• Ball Screw: G1204/G1605/G1610

Caractéristiques / spécifications techniques

• Product type: Dual-gantry 3-axis test platform (X linear motor with Y/Z FSK40 ball screw modules)
• Design features: Zero-backlash scanning; rigid positioning; modular optical breadboard for flexible instrumentation
• Applications: Dual-probe comparative tests, material characterization, non-destructive testing (NDT), field mapping, university laboratory research and testing
• Custom stroke (example on page): X 600 mm / Y 500 mm / Z 500 mm
• Stroke range (series): 50 mm – 1000 mm
• Repeat positioning accuracy (stated): ±0.02 mm
• Position accuracy (listed): 0.03 mm
• Maximum speed: 255 mm/s
• Maximum load capacity: 25 kg
• Compatible ball screw models: G1204, G1605, G1610
