Gateway de comunicação KNMMG-128

VoIPSIPEthernet

Product Overview
The KNMMG-128 FXS analog gateway is a multi-functional voice gateway that provides seamless connectivity with analog phones, fax machines or analog PBXs to VoIP gateway. The overall frame of KNMMG-128 is compact and structured, supporting RJ45 interface standards and up to 128 FXS voice interfaces via user boards plugging at a size of 1U. KNMMG-128 provides a high-performance hardware solution with good voice/fax processing capability, able to provide efficient and high-quality IP voice services for service providers, enterprises, communities and corporate telephone systems.

Basic Information
Model: KNMMG-128
Size: 43.6cm * 60cm * 4.5cm (1U)
Material: (not specified)

Key Features

• High density gateway: 128 FXS ports in 1U size via user boards plugging
• Support IPv4
• 5 km Line Length (MAX)
• Support SNMP
• Multiple codecs supported:
  • G.711 A/U
  • G.723.1
  • G.729A/B
  • iLBC
• Compatible with BroadSoft
• Supports Asterisk and FreeSWITCH platforms

Advanced Functions

• Connect to a variety of VoIP providers to allow flexibility in provider selection
• Integrate with existing phone systems for seamless transition to VoIP

Benefits

• Scalability: scalable solution that can expand with business needs
• Flexibility: adaptable for businesses of all sizes
• Cost savings: reduces need for traditional PBX and lowers long-distance calling costs
• Improved call quality: uses modern voice codecs and echo cancellation for better voice quality

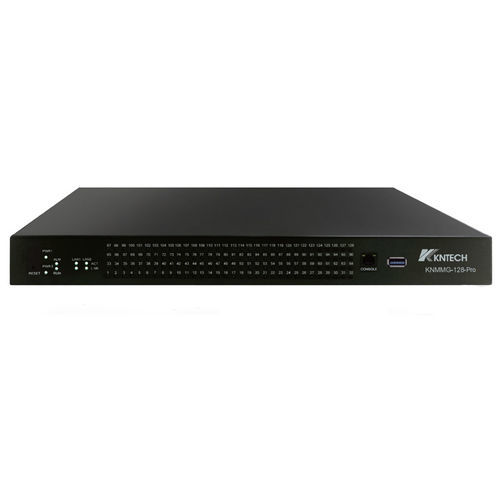

Size Display
Compact 1U design suitable for rack mounting.

Additional Product Visuals
Detailed product, system and detailed view images are available illustrating device layout, size and system integration.

Caractéristiques / spécifications techniques

• Model: KNMMG-128
• Supported ports: 128 FXS ports (via user boards)
• Form factor: 1U rack mount, dimensions 43.6 cm x 60 cm x 4.5 cm
• Interfaces: RJ45 interface standards
• Protocols: SIP and RTP compliant
• Compatibility: Compatible with BroadSoft; works as extensions with Asterisk and FreeSWITCH based IP PBX products
• Voice/fax: High-performance voice and fax processing capability
• Network: IPv4 support
• Management: SNMP support
• Line length: up to 5 km (MAX)
• Codecs: G.711 A/U, G.723.1, G.729A/B, iLBC
• Power (variant): KNMMG-128-Pro variant supports dual AC power supply ports
• Documentation: product datasheet available (PDF)
