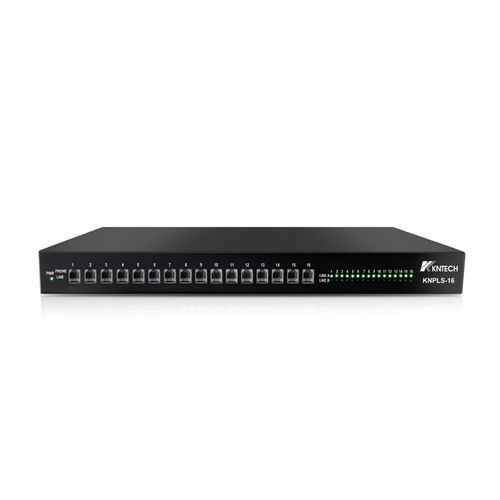

Switch de rede inteligente KNPLS-16

16 portasem linhabox

Overview
The KNPLS-16 A/B Line Switch Box is an analogue phone line switching unit that monitors and switches between Line A (PABX-A) and Line B (PABX-B) to ensure continuous telephone service when one line fails. It supports monitoring of the end device analogue telephone and reports connection failures to the PABX and operator console GUI.

Key Features

• Analogue phone line switch box (Model: KNPLS-16).
• Monitors status of PABX-A (primary) and PABX-B (hot standby backup).
• Automatically switches telephone line from failed primary PABX-A to backup PABX-B to maintain service.
• Supports dual power and dual network for increased reliability.
• Monitors line connection to end device analogue telephone and reports faults to PABX/operator console GUI.

Size and Material
Size: 437.4mm (L) x 252mm (W) x 44.2mm (H). Material: Cold-roll steel sheets.

Application / System
Used where uninterrupted analogue telephone service is required through automatic line switching and monitoring, integrating with PABX systems and operator console displays.

Caractéristiques / spécifications techniques

• Model: KNPLS-16
• Function: A/B telephone line automatic switch and monitor
• Applicable line type: Analogue telephone line
• Primary/Backup: Monitors PABX-A (primary) and PABX-B (backup)
• Power: Dual power support
• Network: Dual network support
• Size: 437.4mm x 252mm x 44.2mm
• Material: Cold-roll steel sheets
• Alarm/report: Reports line/connection failures to PABX and operator console GUI
