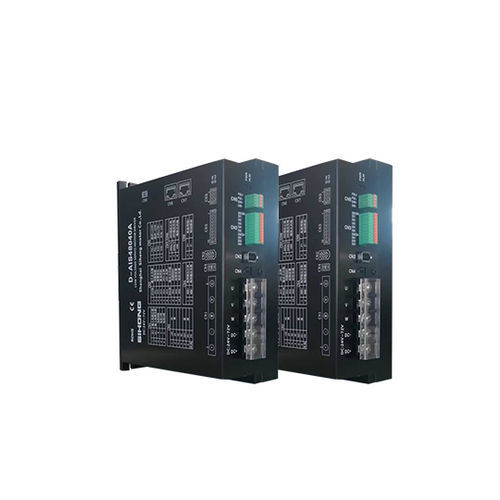

Servoconversor CC D – AIS48050A

RS-485ModBUS RTU24 V

Product DetailsFeatures strong stability, high positioning accuracy, high motor response, low noise, low heat generation, refined structural design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder abnormalities, position deviation, stop, parameter abnormalities, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position Control ② Speed Control ③ Torque Control ④ Communication ControlControl FeaturesSpeed frequency response: ≥200Hz, Pulse frequency received ≤200kHz, Speed fluctuation rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power supply voltageMonitoring FunctionCurrent speed, DI input, DO output, Current position, Command pulse input accumulation, Average load rate, Position deviation count, Motor phase current, Bus voltage value, Module temperature, Alarm log, Speed corresponding to command pulse frequency, Operating status, etc.Home – return function13 Types of standalone (Search) Home – Return modes, and home – Point shift functionRs485 FunctionFollows standard Modbus – RTU Protocol, One – to – Two two – Way communication interface for easy networking and parallel connectionDriver Installation DimensionsProduct model: D – AIS48050ARated voltage: 24 – 72VRated current: 50ASplit – type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit – AI MOTOR inverter interface diagram[See tables in original for detailed pinout and functions]Reference specification table for external braking resistor selection for Split – type Unit Interface Cn9[See tables in original for resistor values and power requirements]Standard Wiring DiagramRS485 Communication WiringMultiple – Slave Connection: For multiple – slave connection, if the communication signal noise is high, it is recommended to add a 120-ohm terminal resistor to the last slave to ensure communication quality.Key Features / Technical SpecificationsModel: D – AIS48050AVoltage range: 24 – 72VRated current: 50AControl methods: Position, Speed, Torque, CommunicationSpeed frequency response: ≥200HzPulse frequency received: ≤200kHzProtections: Over-voltage, Under-voltage, Overspeed, Overcurrent, Overload, Encoder error, Position deviation, Stop, Parameter errorMonitoring: Speed, Position, Input/Output, Load, Current, Voltage, Temperature, Alarm logRS485 Modbus RTU communicationMultiple wiring and interface options
