worm gear reducer / spur / epicyclic / bevel
worm gear reducer
S series

Gearboxes for use in potentially explosive atmosphere ATEX-compliant gearboxes in categories 2G and 2D are available, according to the classification set forth by the European Directive 94/9/CE, applying to areas with presence of potentially ...

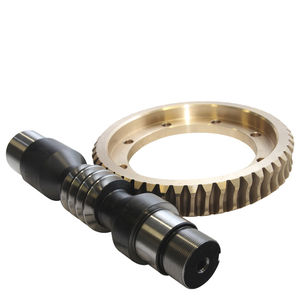

worm gear reducer / orthogonal / high-performance / with flange
worm gear reducer
TD series

Torque: 700 Nm - 47000 Nm

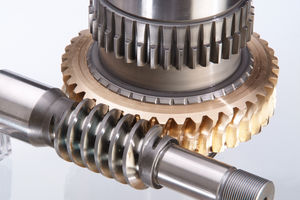

High performance worms using a drum-shaped troidal worm provides high transfer capacity and high efficiency. Two mounting styles are available: foot mount and on-shaft flange mount. Ensures ultimate compactness and weight saving for all layouts.

worm gear reducer / cylindrical / orthogonal / high-performance
worm gear reducer
EWJ, EWJM series

Torque: 12 Nm - 300 Nm

Redesigned to achieve further energy savings through improved performance and efficiency, easier to use due to the case integrated with the foot and a center distance in just mm dimensions. Features Employ dedicated cases which can ...

worm gear reducer / orthogonal / with flange / transmission
worm gear reducer
SWJ, SWJM series

Torque: 12 Nm - 300 Nm

Remodeled for further energy savings through increased performance and efficiency. Also compatible with flange mount on both sides. Motor type has a wide range of options. Features Employ dedicated cases which can be installed ...

worm gear reducer / cylindrical / orthogonal / high-precision
worm gear reducer
EW, EWM series

Torque: 300 Nm - 5300 Nm

Well-balanced in capacity, efficiency and cost while providing high precision and compactness. Foot mounting style is standard. Both solid and hollow output shaft types are available. The solid shaft type is excellent for connections ...

worm gear reducer / cylindrical / orthogonal / shaft-mounted
worm gear reducer
SW, SWM series

Torque: 300 Nm - 5300 Nm

Uses a dedicated case for on-shaft and flange mounting with the same well-balanced worm as the EW Series, contributing to equipment simplification. In addition to a selection between solid and hollow output shafts, Power-Lock and taper ...

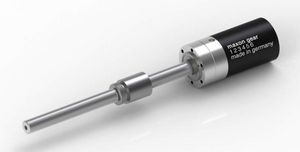

worm gear reducer
worm gear reducer
GP 6 S series

Compact, easy to configure spindle drives as complete systems. With integrated axial bearing for high axial loads. Versions with ball screw, metric spindle and trapezoidal spindle.

worm gear reducer
worm gear reducer
GP 8 S series

The Maxon Motor range of planetary, spur and special gearheads are perfect to use with Maxon motors, and will provide users with reliable and improved torque. These devices are ideal for use with applications that require high torque ...

worm gear reducer
worm gear reducer
GP 16 S series

The Spindle GP 6 is a metric type which is made of ceramic with basic configurations that serves as a complete operation. It is incorporated with an axial bearing for holding up maximum axial contents. The device comes in different forms ...

worm gear reducer
worm gear reducer
GP 22 S series

Maxon Motor's specialized motors are designed to be compressed, and simple to calibrate. They sport effortlessly adjustable spindle drives which function as comprehensive structures, an assimilated axial bearing for extensive axial payloads, ...

worm gear reducer
worm gear reducer
GP 32 S series

This compact electric motor from Maxon are equipped with spindle drives that are easily configured as complete systems. The units have an integrated axial bearing for high axial loads and ensures high performance. This product is an ...

worm gear reducer / coaxial / compact
worm gear reducer

Torque: 202000 Nm - 1920000 Nm

Description Bucket wheel excavators and spreaders have to travel to their place of use and be moved there on their own. The highest loads occur if a difference in height has to be overcome during cornering. The excavator is moved by single ...

worm gear reducer / helical / orthogonal / for harsh environments
worm gear reducer
UNICASE

Torque: 94 Nm - 3058 Nm
Power: 0.12 kW - 15 kW

The right-angle worm gear reducer integrates all bearing seats into a single-piece casting. It eliminates all sealing surfaces that could deflect under the effect of radial forces. The device has a durable cast iron casing for harsh environments. ...

worm gear reducer / orthogonal / high-speed / industrial
worm gear reducer
UNIVERSAL SI

Torque: 21 Nm - 427 Nm
Power: 0.12 kW - 4 kW

With its compact built features, the Universal SI and MI worm gear by NORD DRIVESYSTEMS offers a high power density and the transferral of torque silently. These worm gears which are available in SI and SMI versions save spaces than ...

worm gear reducer / orthogonal / industrial / for valves
worm gear reducer
ABM

Torque: 600 Nm - 2000 Nm
Rotational speed: 96 rpm

Quarter-turn devices for the motorised operation of plug, ball and butterfly valves and power and process dampers. Torque range up to 2,000 Nm (1,475 lbf.ft). 4 sizes. Ratios 34:1 to 200.7:1. • Supports electric actuator weight up ...

See the other products
Rotork plc

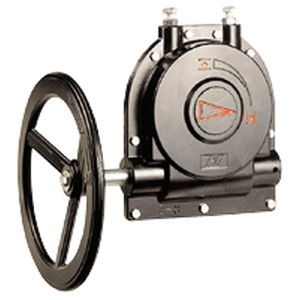

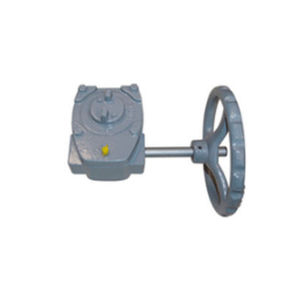

worm gear reducer / orthogonal / manual / for valves
worm gear reducer
IW

Torque: 0 Nm - 850000 Nm

The IW range of quadrant wormgear valve operators is available in manual and motorised configurations and features a removable sleeve to facilitate bore and keyway machining. This sleeve can be rotated in steps to facilitate mounting ...

See the other products
Rotork plc
worm gear reducer / orthogonal / rugged
worm gear reducer
MOW

Torque: 0 Nm - 47000 Nm

Heavy-duty quarter-turn modulating gearboxes suited for control valves. Torque range up to 47,000 Nm (34,500 lbf.ft). 9 sizes. Ratios from 40:1 to 3,000:1. • Up to 1,200 starts per hour • Ground and polished worm shaft • Aluminium ...

See the other products
Rotork plc
stainless steel gear reducer / worm / orthogonal
stainless steel gear reducer
AB-SS

Torque: 0 Nm - 26000 Nm

Heavy-duty stainless steel 316 housing quarter-turn gearboxes suited for plug, ball and butterfly valves serving the water, gas, chemical and power industries in corrosive environments. Torque range up to 26,000 Nm (19,177 lbf.ft). 14 ...

See the other products
Rotork plc
worm gear reducer / parallel-shaft / rugged
worm gear reducer
WGS

Torque: 0 Nm - 32000 Nm

The WGS range of quarter-turn gearboxes are designed for heavy-duty subsea applications at any depth with carefully chosen materials to offer the highest level of reliability required in this very harsh environment. The operator is ...

See the other products
Rotork plc
worm gear reducer / high-precision / maintenance-free / low-noise
worm gear reducer
22700

Torque: 0.2 Nm - 2.1 Nm
Rotational speed: 100 rpm - 1000 rpm

Worm drives Material: Housing aluminium. Worm screw steel, worm wheel special brass. Version: Housing anodized. Worm screw case hardened. Ball bearing with rubber sealing washer RS. Note: Universally applicable and maintenance-free ...

worm gear reducer / orthogonal / maintenance-free / compact
worm gear reducer
2010

Torque: 0.2 Nm - 15 Nm
Rotational speed: 500 rpm

The Compact worm gear reducer Model 2010 is manufactured by Ketterer. The product has compact and durable design because it is made of anodized aluminum. The steel worm and worm gear case are hardened for extra protection and the center ...

worm gear reducer / orthogonal / high-rigidity / transmission
worm gear reducer
4731, 4739, 4743, 4745

Torque: 2 Nm - 17 Nm

The Compact Gear is mainly designed to provide a good quality performance and functionality for very specific purposes. It is a worm gear integrated with a transmission ratio of 1:1, 2:1, 3,25:1, 4,33:1, 5:1, 7:1 and more. It is encapsulated ...

worm gear reducer / orthogonal / high load capacity / compact
worm gear reducer
4747, 4749, 4751, 4755

Torque: 1 Nm - 4 Nm

The Model 4747 is designed with a plastic friction bearing, and an input, placed on the gear's side. The worm gear is designed from a die-cast housing, and may come with a bronze bearing (for special models only). It utilizes a hardened ...

worm gear reducer / orthogonal / compact / hollow-shaft
worm gear reducer
4748, 4750, 4751, 4752, 4767

Torque: 1 Nm - 4 Nm

The Model 4748 is a compact worm gear by Ketterer. The input is located on the small side of the gear. The gears are especially useful for manual operations. It is equipped with a ratio of 1:1, 2:1, 2.8:1, 4.33:1, 10:1, 14:1 and 15:1. ...

worm gear reducer / orthogonal
worm gear reducer
BOX series

Torque: 5.3 Nm - 1882 Nm
Rotational speed: 0.3 rpm - 373.3 rpm
Power: 0.09 kW - 15 kW

The BOX series features a distinct design and is made using advanced parametric CAD SW, assisted by programs designed to calculate thermal dissipation capacity as well as structural resistance/deformation, when exposed to working loads. ...

worm gear reducer / orthogonal / high load capacity / universal
worm gear reducer
Cat. A

Torque: 19000 Nm
Power: 0.09 kW - 55 kW

The category A of Worm Gear Reducers from Rossi Habasit Group are equipped with an integrated forced ventilation and IEC motors. These tools feature an easy and functional shaft mounting system. The worm wheels of these devices are made ...

worm gear reducer / orthogonal / for shafts
worm gear reducer
SG 45 series

Torque: 0.7 Nm

The SG 45 Series is a right-angle worm gear reducer manufactured by Dunkermotoren. It is designed with quiet operation. This device is equipped with bearing on both sides. It can also function with output shaft at 90° to produce an optimum ...

See the other products
Dunkermotoren GmbH
worm gear reducer / orthogonal / for shafts
worm gear reducer
SG 62 series

Torque: 1.5 Nm

The SG 62 series is a right-angle worm gear reducer manufactured by Dunkermotoren. The unit is equipped with bearings on both sides and is designed with minimal noise. It also functions with an output shaft in 90° to produce an optimum ...

See the other products
Dunkermotoren GmbH
worm gear reducer / orthogonal / for shafts
worm gear reducer
SG 80 series

Torque: 2 Nm - 4 Nm

The SG 80 Series is a right-angle worm gear reducer manufactured by Dunkermotoren. It is designed with quiet operation. This device is equipped with bearing on both sides and functions with an output shaft at 90° to produce an optimum ...

See the other products
Dunkermotoren GmbH
worm gear reducer / orthogonal / for shafts
worm gear reducer
SG 80H series

Torque: 2 Nm - 4 Nm

Housing made of high-tensile zinc die-cast Worm wheel made of brass Standard output shaft with ball bearings on both sides, shaft output to the left Optionally with output shaft to the right, double shaft output, hollow shaft version ...

See the other products
Dunkermotoren GmbH
worm gear reducer / orthogonal / for shafts
worm gear reducer
SG 80K series

Torque: 4, 2 Nm

Housing made of high-tensile zinc die-cast Worm wheel made of brass Standard output shaft with ball bearings on both sides, shaft output to the left Optionally with output shaft to the right, double shaft output, hollow shaft version ...

See the other products
Dunkermotoren GmbH
worm gear reducer / orthogonal / solid-shaft / for motors
worm gear reducer
VSF 26 Nema 23

Torque: 1.5 Nm - 18 Nm
Rotational speed: 3000 rpm - 4000 rpm

The VSF 26 NEMA 23 Systems are warm gearboxes with casted aluminum frames delrin. They feature brass gear outlet shafts, supported by two ball bearings each. The VSF 26 NEMA 23 also showcase maximum speed at the reduction gear of 4,000 ...

worm gear reducer / orthogonal
worm gear reducer
7:1 - 75:1 | SN17

Torque: 2.65 Nm

Worm gearboxes from Kag are available in four models: SN17, SN22.6, SN31, and SN40. The gearboxes work with different types of motors: model SN17 works with M42 motors; model SN22.6 is suitable for M42 and M48 machines; model SN31 is ...

worm gear reducer / orthogonal
worm gear reducer
3:1 - 40:1 | SN22,6

Torque: 1.8 Nm

Kahlig AntriebsTechnik's SN 22,6 is a worm box compatible with M42 and M48 motors. The housing is made out of die-cast zinc, while the worm wheel is made out of bronze. In addition, this worm box features grease lubrication for life, ...

worm gear reducer / orthogonal / industrial
worm gear reducer
8.3:1 - 30:1 | SN31

Torque: 4 Nm

The SN31 Series of worm gearboxes showcases capacity rates of 400 Ncm, and ratios that range from 8.3:1 to 30:1. Models of the series are capable of integrating with specific motor configurations. A wide range of model configurations, ...

worm gear reducer / orthogonal / transmission
worm gear reducer
8:1 - 50:1 | SN40

Torque: 12.3 Nm

The SN40 series is manufactured by Kählig Antriebstechnik GmbH, and is a right-angle worm gear reducer which has a torque range of up to 1230 Ncm. It also integrated with transmission ratios ranging from 8:1 to 50:1, which is highly appropriate ...

worm gear reducer / orthogonal / high-rigidity / transmission
worm gear reducer
SC series

Torque: 1100 Nm

The Type SLC is a worm gearbox designed for installation on servo motors. It features a drive end with a square flange and clamping coupling to ensure an efficient work output. The gearbox works with an acceleration torque of 1100 ...

worm gear reducer / orthogonal / transmission
worm gear reducer
S series

Torque: 13.72 Nm

The S series is manufactured by ATEK Antriebstechnik. This right-angle worm gear reducer, has nominal transmission ratios of i= 5:1 to 83:1, and maximum torque of 13720 Nm. It has a free drive and output shafts, with 9 from axle base ...

worm gear reducer / orthogonal / transmission
worm gear reducer
SL series

The SL is a type of worm gearbox manufactured by Atek. It can be installed on an IEC standard motor. The unit features a nominal transmission ratio of 05:1 to 83:1. It has a maximum output torque of 17,720 Nm. The device comes in 9 ...

worm gear reducer / orthogonal
worm gear reducer
BWQ series

Torque: 10 Nm - 2300 Nm
Rotational speed: 0 rpm - 2800 rpm
Power: 0.09 kW - 22 kW

Worm gears in modular square case. Sizes 25, 30, 40, 50, 63, 75, 90, 110 and 130. Output torques from 10 Nm to 2300 Nm Manufactured in aluminium case from 90 size and cast iron for the 110 and 130 ones. Output shafts from d.11 mm ...

worm gear reducer / orthogonal
worm gear reducer
BWQ + BH

Power: 1.5 kW

Reducción de engranajes ideales para acoplar a reductores como pre-reducción. Su uso habitual es para combinar con otros reductores para conseguir reducciones finales más elevadas que el reductor por si solo no puede conseguir. Fabricadas ...

worm gear reducer / orthogonal
worm gear reducer
BWQ

Torque: 10 Nm - 2300 Nm
Power: 0.09 kW - 22 kW

worm gear reducer / right-angle / with integrated torque limiter / combined
worm gear reducer
CRI/CRMI series

Torque: 12 Nm - 4600 Nm
Rotational speed: 0.07 rpm - 60 rpm
Power: 0.06 kW - 4 kW

worm gear reducer / right-angle / high-torque / shaft-mounted
worm gear reducer
CR-CB series

Torque: 30 Nm - 700 Nm
Rotational speed: 0.8 rpm - 65 rpm
Power: 0.06 kW - 5.5 kW

epicyclic gear reducer / worm / parallel-shaft / for hoist units
epicyclic gear reducer
RXP-E series

Torque: 27000 Nm - 177000 Nm
Power: 1.1 kW - 613 kW

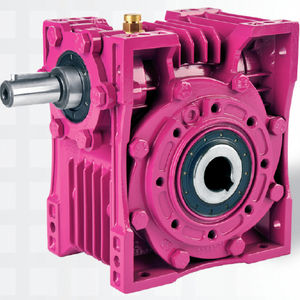

worm gear reducer / orthogonal / compact
worm gear reducer
NMRV

Varitron NMRV Worm gear reducers provide market advance solution with efficiency and flexibility. NMRV worm gear series also available as compact integral helical/worm option, has been designed with a view to modularity: low number of ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
worm gear reducer / orthogonal / high-efficiency / shaft
worm gear reducer
NRV

Varitron NRV Worm gear reducers provide market advance solution with efficiency and flexibility. Low number of basic models can be applied to a wide range of power ratings guaranteeing top performance and reduction ratios from 5 to 1000.

See the other products
Varitron Eng. (Taiwan) Co. Ltd

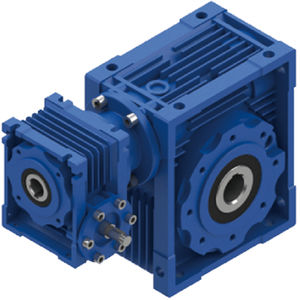

worm gear reducer / orthogonal / high-efficiency / compact
worm gear reducer
NMRV-NMRV

Varitron NMRV-NMRV Worm gear reducers provide market advance solution with efficiency and flexibility. NMRV worm gear series also available as compact integral helical/worm option, has been designed with a view to modularity: low number ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
worm gear reducer / helical / perpendicular / modular
worm gear reducer
PC +NMRV

The Helical Gear PC construction is modular and therefore it can be supplied as separate unit to be mounted on NMRV Worm Gear reducer to increase reduction ratio.

See the other products
Varitron Eng. (Taiwan) Co. Ltd
worm gear reducer / perpendicular / high-efficiency / compact
worm gear reducer
NRV-NMRV

Varitron NRV-NMRV Worm gear reducers provide market advance solution with efficiency and flexibility. NMRV worm gear series also available as compact integral helical/worm option, has been designed with a view to modularity: low number ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd

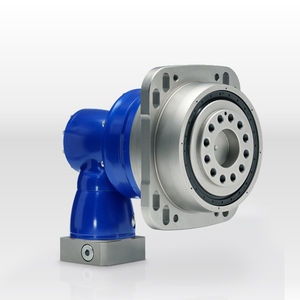

worm gear reducer / orthogonal / precision / high-torque
worm gear reducer
EJM series

Torque: 22 Nm - 505 Nm

NIDEC-SHIMPO extends their line of high-precision gears to EJ series of servo-grade worm gears. On the basis of priorities, EJM, EJH, and EJP line of products are offered with emphasis on economy, heavy-duty capability, and high precision, ...

worm gear reducer / orthogonal / low-backlash / industrial
worm gear reducer
EJH series

Torque: 29 Nm - 505 Nm

The EJH is a right-angle worm gearbox engineered by Nidec-Shimpo. It is suitable for use in applications within custom assembly and test systems, packaging equipment, metal cutting and metal forming machinery, general purpose automotive, ...

worm gear reducer / orthogonal / precision / maintenance-free
worm gear reducer
EJP series

Torque: 29 Nm - 550 Nm

Nidec-Shimpo's precision right-angle gearing options from the EJ series are servo grade speed reducers that are perfect for motion control applications. They fill the requirement for gearing options that are right-angle and needing high ...

worm gear reducer / orthogonal
worm gear reducer

Torque: 3.75 Nm - 164 Nm
Rotational speed: 1500 rpm - 2000 rpm

ENGRENAGES HPC's worm and wheel gearboxes feature ratios that range from 5:1 to 120:1. Each gearbox size comes with a shaft input, a flanged input, and square NEMA 17-grade flange (with the exception of the compact model configurations). ...

worm gear reducer / right-angle / with integrated torque limiter
worm gear reducer

Torque: 0 Nm - 138 Nm
Rotational speed: 0 rpm - 2800 rpm

NEW FOR 2015! ENGRENAGES HPC has completed its already wide range of worm and wheel gearboxes by adding new models with integrated torque limiters. Designed to occupy the minimum of space and requiring no additional assembly, the integrated ...

worm gear reducer / right-angle / manual
worm gear reducer

Torque: 0 Nm - 17 Nm

ENGRENAGES HPC has completed its range of gear reducers by adding several manually operated versions. This part of the range now comprises: - Manually operated right angled gear reducers with ratios from 1:1 to 30:1 - Manually operated ...

worm gear reducer / orthogonal
worm gear reducer

Screw Down drives Worm screw gear set for screw down drive; 970 mm center distance, ratio 29.5. 87 tons total assembly weight, including support frame, auxiliary equipment, breaks, auxiliary gear motors, etc
