TECHNICAL DATAS
Ball bearing axle
Inspection cap : galvanised steel
Flap that can be dismantled-high resistance dynamic gasket for Airtightness with permanent pressure
Standard finish : one-coat paint
|
|

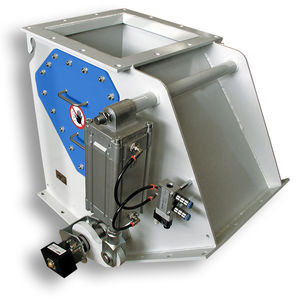

VORTEX® 2-WAY SEAL TITE DIVERTER
The Vortex® 2-Way Seal Tite Diverter is designed for use in gravity flow applications where material can be diverter from one source to either of two destinations. 3-way model available.
The Seal Tite Diverter offers a removable access door for replacement of blade and shaft seals. All internal ledges have been eliminated to promote cleanliness. The Seal Tite Diverter’s superior design promotes efficiency, durability, and long service life.
Valve Specifications
- Size/Bore Options: 100mm to 750mm Diameter Round, Square, or Rectangular
- Media: Powder, Pellets, Granulars
- Connection Options: SVC Standard Flange, ANSI, DIN, JIS, or Custom Flanges
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: 0 barg, Gravity Flow Only
- Metal Construction Options: 304 or 316L Stainless Steel, and Carbon Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Natural Rubber, Kryptane, and/or Silicon Rubber
- Drive/Actuation Options: Double Acting Air Cylinder, Electric Actuator, or Hand Lever
- Position Confirmation: Magnetic Reed Switch, Proximity Switch, or Mechanical Switch
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochem, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|
VORTEX® QUANTUM SERIES 2-WAY WYE LINE DIVERTER
The patent pending Vortex® Quantum Series Wye Line Diverter is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 psig (1 barg). 3-way, 4-way, and Multi-Port models available.
A full flow orifice provides unrestricted conveying of material with no disk or ledges to impede flow. The diverter seat and live-loaded seals are shielded from abrasion by a metal insert, which provides superior shearing action.
The Wye Line Diverter is designed to eliminate problems, enabling you to meet your objectives by increasing production, while decreasing labour and equipment costs.
Valve Specifications:
- Size/Bore Options: 50mm to 125mm Diameters Pipe, 50mm to 150mm Tube. Consult Factory for 150mm to 300mm Pipe, 200mm to 300mm Tube Models
- Media: Powder, Pellets, Granulars
- Connection Options: ANSI, DIN, JIS, or Compression Couplings
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: -0.1 MPa +0.1 MPa, 1 barg, 15 psig, depending on size
- Metal Construction Options: 304 or 316L Stainless Steel, Aluminium, and/or Carbon Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Natural Rubber, and/or Silicon Rubber
- Drive/Actuation Options: Double Acting Air Cylinder, Electric Actuator, Handwheel, or Chainwheel
- Position Detection: Magnetic Reed Switch, Proximity Switch
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochemicals, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|
Whatever you want from a Bulk Materials cut-off valve you’ve got it with Clyde Materials unbeatable Dome Valve® - the cost effective valve solution.
The Clyde Dome Valve®, widely regarded as the original and best material handling valve in the world, offers exceptional life from only a single moving part. The Dome Valve® is recognised as a low maintenance, long life solution that can last at least 1 million cycles between maintenance inspections. It has the ability to cut through static or moving columns of material and is pressure-tight, ensuring a consistent pressure tight seal is created when the valve is in the closed position, but in the open position it provides an unrestricted full bore opening for the best product flow characteristics possible. The Dome Valve® can also be used as a line, vessel or reactor isolation valve.
The Dome Valve® enhances other technologies from Clyde Materials Handling, a leading provider of pneumatic injection, conveying, materials handling & vacuum cleaning solutions.
The solutions we create for our customers generate many benefits and are backed by three decades of domain knowledge, expertise and a track record of generating exemplary success.
Dome Valve® sold in the United States under the trade name ‘Spheri Valve’
|
|
All two-way-valves,
two-way-valves with inlet collar, two-way-valves with seal, two-way distributors 60° and two-way distributors 45°, are available in symmetric as well as in asymmetric form.
Symmetrical versions are optimized for an installation in vertical bulk goods lines, asymmetric ones for lines that have an inclination that corresponds to the angle between the outlets.
The pictures below only show the symmetric form.
|
|
TECHNICAL DATAS
Ball bearing axle
Inspection cap : galvanised steel
Flap that can be dismantled-high resistance dynamic gasket for Airtightness with permanent pressure
Standard finish : one-coat paint
|
|
TECHNICAL DATAS
Ball bearing axle
Inspection cap : galvanised steel
Flap that can be dismantled-high resistance dynamic gasket for Airtightness with permanent pressure
Standard finish : one-coat paint
|
|
VORTEX® 2-WAY SEAL TITE DIVERTER
The Vortex® 2-Way Seal Tite Diverter is designed for use in gravity flow applications where material can be diverter from one source to either of two destinations. 3-way model available.
The Seal Tite Diverter offers a removable access door for replacement of blade and shaft seals. All internal ledges have been eliminated to promote cleanliness. The Seal Tite Diverter’s superior design promotes efficiency, durability, and long service life.
Valve Specifications
- Size/Bore Options: 100mm to 750mm Diameter Round, Square, or Rectangular
- Media: Powder, Pellets, Granulars
- Connection Options: SVC Standard Flange, ANSI, DIN, JIS, or Custom Flanges
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: 0 barg, Gravity Flow Only
- Metal Construction Options: 304 or 316L Stainless Steel, and Carbon Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Natural Rubber, Kryptane, and/or Silicon Rubber
- Drive/Actuation Options: Double Acting Air Cylinder, Electric Actuator, or Hand Lever
- Position Confirmation: Magnetic Reed Switch, Proximity Switch, or Mechanical Switch
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochem, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|
VORTEX® QUANTUM SERIES 2-WAY WYE LINE DIVERTER
The patent pending Vortex® Quantum Series Wye Line Diverter is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 psig (1 barg). 3-way, 4-way, and Multi-Port models available.
A full flow orifice provides unrestricted conveying of material with no disk or ledges to impede flow. The diverter seat and live-loaded seals are shielded from abrasion by a metal insert, which provides superior shearing action.
The Wye Line Diverter is designed to eliminate problems, enabling you to meet your objectives by increasing production, while decreasing labour and equipment costs.
Valve Specifications:
- Size/Bore Options: 50mm to 125mm Diameters Pipe, 50mm to 150mm Tube. Consult Factory for 150mm to 300mm Pipe, 200mm to 300mm Tube Models
- Media: Powder, Pellets, Granulars
- Connection Options: ANSI, DIN, JIS, or Compression Couplings
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: -0.1 MPa +0.1 MPa, 1 barg, 15 psig, depending on size
- Metal Construction Options: 304 or 316L Stainless Steel, Aluminium, and/or Carbon Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Natural Rubber, and/or Silicon Rubber
- Drive/Actuation Options: Double Acting Air Cylinder, Electric Actuator, Handwheel, or Chainwheel
- Position Detection: Magnetic Reed Switch, Proximity Switch
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochemicals, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|
Whatever you want from a Bulk Materials cut-off valve you’ve got it with Clyde Materials unbeatable Dome Valve® - the cost effective valve solution.
The Clyde Dome Valve®, widely regarded as the original and best material handling valve in the world, offers exceptional life from only a single moving part. The Dome Valve® is recognised as a low maintenance, long life solution that can last at least 1 million cycles between maintenance inspections. It has the ability to cut through static or moving columns of material and is pressure-tight, ensuring a consistent pressure tight seal is created when the valve is in the closed position, but in the open position it provides an unrestricted full bore opening for the best product flow characteristics possible. The Dome Valve® can also be used as a line, vessel or reactor isolation valve.
The Dome Valve® enhances other technologies from Clyde Materials Handling, a leading provider of pneumatic injection, conveying, materials handling & vacuum cleaning solutions.
The solutions we create for our customers generate many benefits and are backed by three decades of domain knowledge, expertise and a track record of generating exemplary success.
Dome Valve® sold in the United States under the trade name ‘Spheri Valve’
|
|
All two-way-valves,
two-way-valves with inlet collar, two-way-valves with seal, two-way distributors 60° and two-way distributors 45°, are available in symmetric as well as in asymmetric form.
Symmetrical versions are optimized for an installation in vertical bulk goods lines, asymmetric ones for lines that have an inclination that corresponds to the angle between the outlets.
The pictures below only show the symmetric form.
|
|
TECHNICAL DATAS
Ball bearing axle
Inspection cap : galvanised steel
Flap that can be dismantled-high resistance dynamic gasket for Airtightness with permanent pressure
Standard finish : one-coat paint
|
|
Medium: water, air, neutral fluids
Ambient temperature: -10 to +50 [°C]
Voltage: 230 [V], 50 [Hz]; 24 [V] DC
Coil power: 8,5 [VA]; 6 [W]
Protection enclosure: IP 65
Duty rating: 100 [%]
Mounting position: optional
Materials
· seal - NBR
· body - brass
· internal parts - stainless steel
|
|

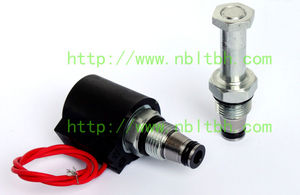

Solenoid valve with BRASS and STAINLESS STEEL 316 body.
2 ways normally closed and normally opened.
Direct, indirect and combined acting
Seals: Buna (NBR), Viton (FKM), EPDM, Ruby, Teflon (PTFE).
Coils: Standard, Bistable, Explosion proof
Port size from 1/8" to 2" and soket.
Fluid temperature up to 180°C.
The ODE solenoid valve range 2ways can be used in a wide quantity of applications whereas fluid compatibility with materials and performance are respected. Fluids can be gaseous or liquids.
The class H coils permit to work up to 180°C and bistable coils allow low energy consumption for portable applications or where temperature increase must be avoid. The explosion proof coils works in potential explosive environments.
|
|
|
The Alcon 2- way Gas & Fuel Oil Solenoid Valves are offered in 3 series of valves. The UGB Series has lightweight aluminum construction and is ideal for low-pressure natural gas. The U28 Series features a compact design that is ideal for air, inert gases, manufactured gas, natural gas, lp gas or light oil. All of these are approved safety shut-off valves. The UACF Series also features a compact design with Viton seal configuration providing approved safety shut-off for fuel oils.
|
|
|
Alcon 2-way General Purpose Large Solenoid Valves are available in the UACD and UACP Series. The UACD valves feature a robust design with a diaphragm operation. These large valves are fully ported for high Cv and offer both standard and optional valve materials for its body and seals. The UACP valves feature a heavy-duty valve design, and piston operation with a wide temperature range capabilities.
|
|
Medium: water, air, neutral fluids
Ambient temperature: -10 to +50 [°C]
Voltage: 230 [V], 50 [Hz]; 24 [V] DC
Protection enclosure: IP 65
Duty rating: 100 [%]
Mounting position: optional
Materials
· seal - NBR, EPDM
· body - brass
· internal parts - stainless steel, brass
|
|
|
Alcon 2-way General Purpose Small Solenoid Valves feature a compact design with a wide range of pipe sizes and available orifices. These valves are zero pressure rated. The U21 and U22 Series offer standard and optional valve materials for both the body and seals. Valves are offered with wire or DIN electrical connection. The class H coil insulation is suitable for continuous duty.
|
|
|
2-Way Direct Acting solenoid valves are available with 1/8" - 3/8" NPT or BSP threads and Brass, Stainless Steel or Polymer valve bodies. Our E-Series offers a small compact 5 watt version for the light duty to consumer market while the Industrial Series offers a robust 10 watt solenoid for critical applications and higher pressure ratings.
|
|
|
2-Way/3-Way Solenoid Valves in sizes from 1/8" to 3" NPT/BSP threads and 1/4" or 3/8" John Guest Push-In Connections in Brass, Stainless Steel or Polymers. Pressure ratings from 0 to 2,200 psi (0-151.7 bar). B/C Valve offers a wide variety of voltages, coil housings and custom options to meet any requirement while keeping costs down.
|
|
The solenoid is an electromagnetic part of a valve, comprised of a coil, coretube, core and enclosure. ASCO Redhat brand offers the worlds largest selection of 2-, 3- and 4-way solenoid valves, designed to handle the most demanding fluid control applications.
One inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are “Normally Closed” and “Normally Open”.
|
|
|
Robust 3/2-way valve, directly controlled by spring resetting. Solenoid valves are used where quick switching from suction to ventilation is required. The valve can additioinally be admissioned with compressed air in order to accelerate the ventilation process (max. 1 bar overpressure - on connection 1). When without current, the valves are open (NO). This guarantees that the vacuum circuit is not ventilated in case of a power failure and that engaged goods do not fall off at once.
|
|
