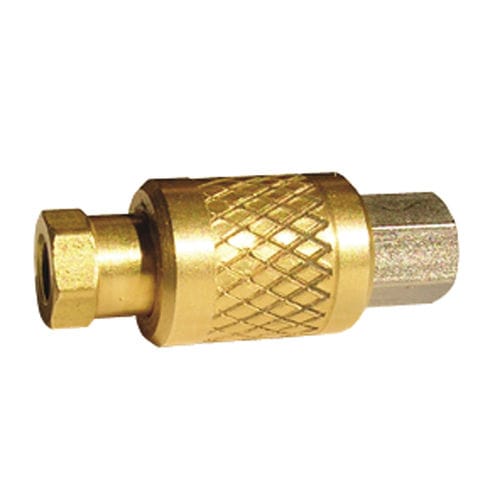

Slide valve M3SV-N.-.manualcontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Operation
- manual
- Function
- control, shut-off
- Media
- for water, for oil, for chemical products, for fuel, for gas, for air
- Body
- threaded, in-line, miniature, stainless steel, brass
- Applications
- for the chemical industry, for the food industry, for pharmaceutical applications, instrumentation, for medical applications, high-purity, laboratory, for the semiconductor industry
- Number of channels
- 2-way
- Other characteristics
- compact, corrosion-resistant, high-performance, with seal
- DN
Max.: 0.7 mm
(0.028 in)Min.: 0.6 mm
(0.024 in)- Pressure
Max.: 17.2 bar
(249.5 psi)Min.: 0 bar
(0 psi)
Description
The M3SV series ultra miniature M3 threaded non-venting slide sleeve valve is another addition to Beswick’s growing M3 product line. It provides efficient control (on/off) of gas or liquid in an inline configuration. The valve can be attached directly in a fluid circuit and does not require panel mounting. The valve is a 2-way (non-venting) device. There is no preferred flow direction. Inlet can be through either M3 internal threaded port.
Approximate Weight: 4.25g in brass and 303 stainless.
Porting: M3 internal threaded inlet and outlet ports.
Features
Inline mounting for easy integration
