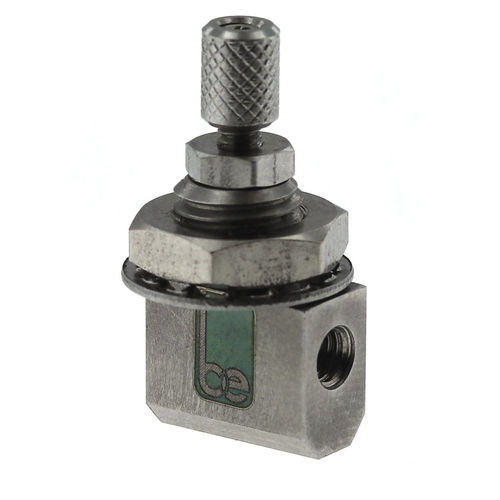

Needle valve NV3I-M3-.-3.

manualfor controladjustment

Beswick’s NV3I provides performance similar to the NV3 90 degree and cartridge mount style needle valves, but in a convenient in-line configuration. Working Pressure Range: The NV3I is rated for a maximum inlet pressure of 1,000 psig. The metal to metal seal provides a positive shut-off down to 25 in HG (vacuum). Adjustment: All versions come equipped with a 1-72 threaded adjustment screw. There are approximately 4 revolutions of adjustment from fully opened to fully closed. Weight: Approximately 4g Porting: M3 female threaded inlet and outlet ports. Mounting: All models are supplied with a 1/4-28 thread, 3/8″ hex nut, and lock washer for panel mounting. Features: Stainless steel valve seat allows flows to remain steady despite changes in temperature Inline mounting arrangement
