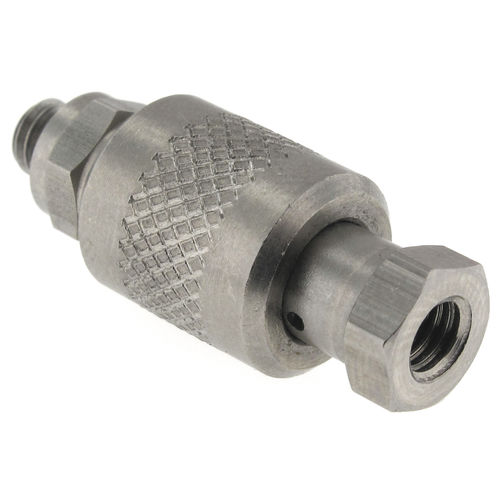

Slide valve MSV-..-.manualshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Operation
- manual
- Function
- shut-off
- Media
- for water, for oil, for chemical products, for fuel, for gas, for air
- Body
- threaded, in-line, miniature
- Applications
- for the chemical industry, for the food industry, for pharmaceutical applications, instrumentation, for medical applications, laboratory, for the semiconductor industry
- Material
- brass, stainless steel
- Associated function
- exhaust
- Other characteristics
- compact, corrosion-resistant, high-performance, chemical-resistant
- DN
Max.: 1.1 mm
(0.043 in)Min.: 1 mm
(0.039 in)- Pressure
Max.: 13.8 bar
(200.2 psi)Min.: 0 bar
(0 psi)
Description
The MSV series slide sleeve valve provides an efficient in-line three-way valve. When the sleeve is moved to the “ON” position, fluid is allowed to pass through the valve. When the sleeve is moved to the “OFF” position, the outlet is exhausted to the atmosphere and fluid is prevented from exiting the inlet port. The valve can be attached directly on a device to be isolated and does not require mounting.
Approximate Weight: 15g in brass and 303 stainless. Weight will vary slightly, depending on configuration.
Porting:10-32 internal, 10-32 external, or barbed inlet port, 10-32 internal threaded outlet port.
Features
Inline mounting for easy integration
Allows for venting of downstream pressure when in “OFF” position
