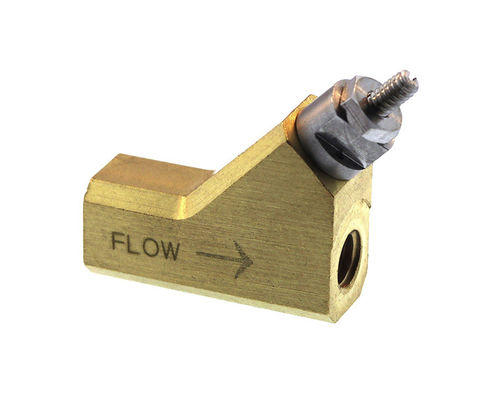

Adjustable cracking pressure check valve CKVA-10-1.-.poppetfemale-femaleminiature
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Body
- female-female, miniature
- Material
- stainless steel, brass
- Valve plug seal material
- EPDM, VitonĀ®, silicone
- Other characteristics
- adjustable cracking pressure
- Pressure
Max.: 250 psi
Min.: 1 psi
Description
The Beswick CKVA is a poppet style check valve with adjustable cracking pressure. The cracking pressure can be adjusted from 1 psig to 40 psig. This valve requires back pressure to be applied before the cracking pressure resets to your original set point.
Working Pressure Range: The CKVA is rated for a maximum pressure of 250 psig.
Adjustment: All configurations come equipped slotted screw adjustment.
Approximate Weight: 12.2g in brass and stainletss steel (303 & 316).
Porting: 10-32 internal threaded inlet and outlet ports.
