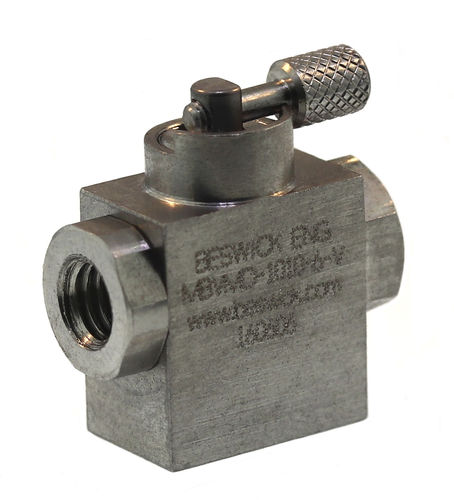

Ball valve MBVMD-1010.-.
manualmixingdiverter

ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
mixing, diverter, selector
Media
for water, for oil, for chemical products, for fuel, for gas, for air
Body
threaded, miniature, stainless steel
Applications
for the chemical industry, for the food industry, for pharmaceutical applications, for vacuum, instrumentation, for medical applications, high-purity, laboratory, for the semiconductor industry, for precision materials handling
Number of channels
3-way
Other characteristics
standard, compact, corrosion-resistant, high-performance, chemical-resistant, multi-directional
DN

1.78 mm
(0.07 in)

Pressure

Min.: 0 psi

Max.: 500 psi

Description

Beswick’s miniature mixing/diverting ball valve is an excellent choice for applications requiring a port selection valve. The MBVMD allows bi-directional flow between a common inlet port on the bottom of the valve, and one of two selectable ports on either side. There is also a “mixing” position, that allows flow between the common port and both selectable ports simultaneously. This valve does not have an “off” position. This design also offers compact size, light weight and non-restricted flow. Porting: 10-32 internal threaded inlet and outlet ports. Note: A Teflon® seat is used to seal the ball on all configurations. All configurations also contain one o-ring seal. The standard o-ring seal material is Buna-N. Optional materials include EPDM and Viton.
