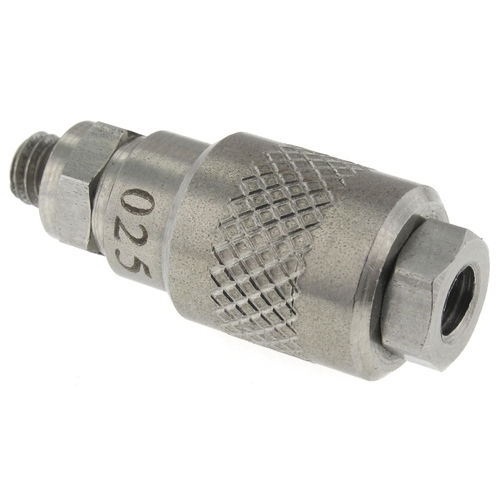

Slide valve MIL-FOFC-..
manualflow controladjustment

slide valve
slide valve
slide valve
slide valve
Add to favorites
Compare this product


Characteristics

Type
slide
Operation
manual
Function
flow control, adjustment, metering
Media
for water, for oil, for chemical products, for fuel, for gas, for air
Body
threaded, in-line, miniature, stainless steel, brass
Applications
for the chemical industry, for the food industry, for pharmaceutical applications, instrumentation, for medical applications, laboratory, for the semiconductor industry
Other characteristics
standard, compact, corrosion-resistant, high-performance, chemical-resistant
DN

Min.: 0.1 mm
(0.004 in)

Max.: 7.4 mm
(0.291 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 13.8 bar
(200.2 psi)

Description

The Beswick MIL-FOFC contains a factory pre-set orifice and check valve. The orifice meters flow in the forward direction, while the check valve permits free return flow. This valve is ideal for applications where improper adjustment of a flow setting could damage the machine or process. Effective Orifice: Standard orifice sizes available from 0.004” to 0.029” (0.1-7.4 mm). Other orifice sizes also available upon request. Adjustment: The orifice within this valve is factory pre-set. Rotation of the knurled sleeve will not change the orifice setting. Approximate Weight: 16g in brass and 303 stainless. Weight will vary slightly, depending on configuration. Porting: 10-32 external threaded inlet and 10-32 internal threaded outlet ports. Seal Material: Buna-N Features Inline mounting for ease of installation Tamper proof factory pre set
