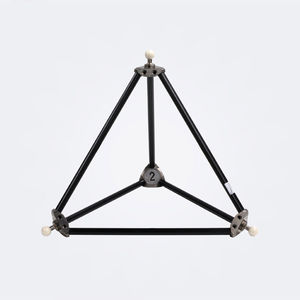

Innovalia Metrology manufactures 2D and 3D ball artifacts up to 1.5m corner to corner spacing, to perform extremely fast interim checks of CMMs, equipped with contact systems and optical systems.
InfiniteFocus Real3D is an optical 3D micro coordinate measurement system for complete form measurement of cutting edges. Form, contour and roughness are measured in ...
Clamping device, for horizontal mounting of components such as drills or milling cutters enabling it to be rotated into the desired position. Also cutting edges are measured easily. Useable for: InfiniteFocus, InfiniteFocusSL, IF-EdgeMaster
Grip for measurement of small objects in various positions. This grip can be adjusted to most specimens and also locked in the desired position. Measurement comfort and repeatability are increased. The grip enables repeatable measurement results.
Sample holder with a non-slipery micro-structure to fix components with a smooth contact surface in XY. Users achieve highly repeatable measurements by fixing the sample holder with four knurled screws ...
Grip for higher automated and repeatable measurement of small objects, especially inserts, in variable oblique positions (90°, 80°, 60°, 55°, 35°, 0°). Measurement comfort is increased. Depending on the size of the objects and the degree ...
Grip for user-friendly and repeatable clamping of shaft tools with complex cutting edge geometries. The clamping system is tiltable from 0 to 90 degree. An adjustable axial and radial stop collar allows the repeatable clamping of the ...
Hardware for aligning components along X or Y axis of the system. Ideal for the measurement of horizontal or vertical grooves. The dimensions are 310 mm x 310 mm x 14.5 mm.
The sample holder consists of a longer and a shorter ruler with double sided scale. Different threaded holes in the mounting plate afford different installation positions. The holder is versatile in use ...
The vacuum plate is used for fixing samples on InfiniteFocus G5. Thin walled and sensitive materials, e.g. sheets, paper or rubber can be easily fixed. The plate consists of a porous base plate which distributes the vacuum evenly on the ...
... roughness measurements a stable position can be ensured. For high repeatability the plate is fixed with two included screws on the XY table. The Spacer-Plate is available in two different heights: 17.5 mm and 35 mm.
Optical 45° mirror to also measure the inner geometry of components. Complex forms such as undercuts and/or steep flanks are measured with high resolution. The length of the hypothenuse is 28.30 mm and of the cathetus 20 mm.
Four large and four small clamping bridges are used to fix components in a certain position. The sample holder is a flexible solution for flat, steep and round components.
