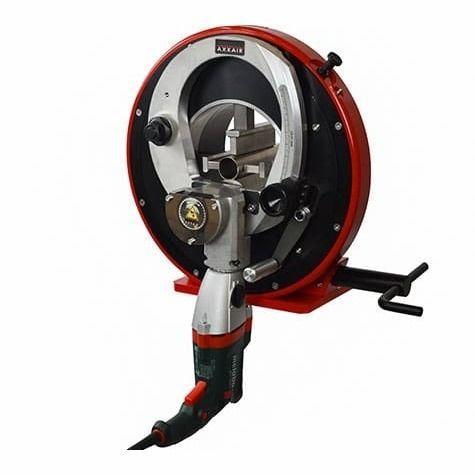

Stainless steel pipe cutter 171ECO serires

electricorbitalbench-mounted

Overview
The AXXAIR 171ECO orbital cutting machine provides precise, deformation-free cuts for thin- and thick-walled tubes. Stainless-steel concentric jaws clamp each tube to maintain geometry while the orbital saw rotates smoothly to deliver repeatable, perpendicular cuts that minimize the gap between tube ends and reduce or eliminate facing operations.

Tube OD Range
0.625 – 6.625" / 16 – 170 mm

Product Advantages

• Lightweight ECO design driven by a speed-adjustable 1300 W Metabo motor for easy handling and controlled cutting speed.
• Stainless-steel concentric clamping system with multiple contact points to extend the cutting range and prevent tube distortion.
• Stainless-steel jaws protect the tube surface from contamination during clamping.
• Penetration lever engages the blade for consistent entry and cut, reducing operator effort and increasing blade life.
• Short blade-to-jaws distance reduces vibration, improving cut quality and further extending blade life.

Additional Product Notes
AXXAIR offers high-quality blades for burr-free square cuts (perpendicularity < 0.25 mm / 0.01") and compatible lubricant oil and paste. The 171ECO can be fitted with support benches for cutting longer tubes.

Technical specifications

• Description: 171ECO
• Part No.: 171ECO1 – 171ECO2
• Diameter range: 0.625 – 6.625" / 16 – 170 mm
• Cutting capacity: 0.2" / 5 mm
• Blade rotational speed: 24 – 144 / 68 – 413 rpm
• Electric motor power: 1300 watt
• Voltage: 110 or 220 volt
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 92 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 44 kg / 97 lbs
• Machine dimensions: 17.83 x 21.65 x 10.28" / 453 x 550 x 307 mm
• Packing dimensions: 16.53 x 24.41 x 28.35" / 420 x 620 x 720 mm
• Packing weight: 130 lbs / 59 kg
