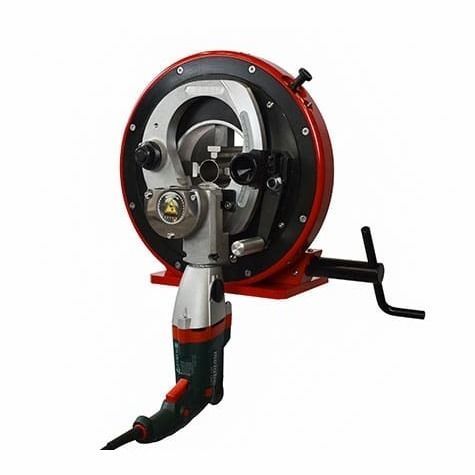

Stainless steel pipe cutter 121ECO

electricorbitalbench-mounted

Overview
Achieve precise, deformation-free cuts with the AXXAIR 121ECO orbital cutting machine. Engineered with stainless-steel concentric jaws, the unit clamps tubes securely to prevent distortion—critical for thin-walled sections—while the orbital saw delivers repeatable, perpendicular cuts that minimise the gap between tube ends and avoid additional facing operations.

Tube Range
TUBE OD RANGE: 0.25 – 4.5" / 5 – 121 mm

Application
Designed for flexibility, productivity and portability, the 121ECO is suited to on-site and workshop use for automatic and orbital welding preparation where precise tube-to-tube alignment is required. The ECO range prioritises cutting performance and transportability.

Product Advantages

• Lightweight ECO design powered by a speed-adjustable 1300 W Metabo motor for portable cutting performance.
• Stainless-steel concentric clamping with multiple contact points increases cutting range and quality while preventing tube deformation.
• Stainless-steel jaws protect the tube surface from contamination.
• Penetration lever engages the blade for controlled, consistent penetration, extending blade life and improving operator safety and ease of use.
• Short blade-to-jaws distance reduces vibration, improving cut finish and blade longevity.
• Compatible with AXXAIR high-performance blades for burr-free square cuts (< 0.25 mm / 0.01" perpendicularity); lubricant oil/paste and support benches for longer tubes available.

Specifications (table)
DESCRIPTION: 121ECO
Part No.: 121ECO1 – 121ECO2
Diameter range: 0.25 – 4.5" / 5 – 121 mm
Cutting capacity: 0.2" / 5 mm
Blade rotational speed: 24 – 144 / 68 – 413 rpm
Electric motor power: 1300 watt
Voltage: 110 or 220 volt
Frequency: 50 / 60 hz
Max acoustic radiation: 92 dB
Vibration level: < 2.5 m/s2
Unit weight: 38 kg / 84 lbs
Machine dimensions: 17 x 20.47 x 11.69" / 432 x 520 x 297 mm
Packing dimensions: 16.53 x 24.41 x 28.35" / 420 x 620 x 720 mm
Packing weight: 123.46 lbs / 56 kg

Technical specifications

• Model: 121ECO
• Part No.: 121ECO1 – 121ECO2
• Tube/diameter range: 0.25 – 4.5" / 5 – 121 mm
• Max cutting capacity: 0.2" / 5 mm
• Blade rotational speed: 24 – 144 / 68 – 413 rpm
• Electric motor: 1300 W (speed-adjustable Metabo motor)
• Voltage options: 110 V or 220 V
• Frequency: 50 / 60 Hz
• Acoustic emission: 92 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 38 kg / 84 lbs
• Machine dimensions (L x W x H): 432 x 520 x 297 mm / 17 x 20.47 x 11.69"
• Packing dimensions: 420 x 620 x 720 mm / 16.53 x 24.41 x 28.35"
• Packing weight: 56 kg / 123.46 lbs
• Clamping system: stainless-steel concentric jaws (multipoint contact)
• Cut quality: burr-free square cuts (< 0.25 mm / 0.01" perpendicularity)
