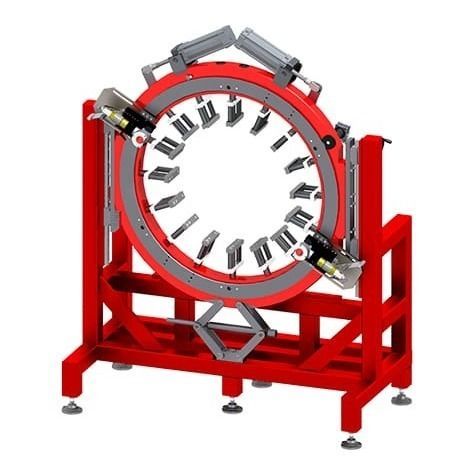

Stainless steel pipe cutter CC1100

electricorbitalbench-mounted

Overview
The AXXAIR CC1100 orbital cutting machine is engineered for extreme large-diameter pipe cutting, handling outside diameters from 711 to 1080 mm (28–42.52 in). Its orbital saw blade rotates concentrically around the tube to deliver square, high-precision cuts while preserving roundness, even on thick-walled materials. Suitable for carbon steels, stainless steels and exotic alloys, it provides consistent performance on the largest pipe sizes.

Tube OD Range
711 – 1080 mm / 28 – 42.52 in

Power & Drive
Pneumatic or electric drive options with 1200 W motors (110 V or 220 V, 50–60 Hz electric). Stainless-steel concentric clamping system with stainless jaws prevents deformation and contamination. Advanced blade control, smooth rotation and optional automatic rotation and clamping improve repeatability, safety and productivity.

Product Advantages

• Concentric stainless-steel clamping with multiple contact points increases cutting range and avoids tube distortion.
• Stainless-steel jaws protect tube surfaces from contamination.
• Distinctive rotation wheel ensures smooth rotation, extends blade life and improves cut quality; optional automatic rotation and clamping available.
• Penetration lever secures consistent blade engagement for controlled cutting, improved safety and longer blade life.
• Short blade-to-jaws distance reduces vibration for burr-free square cuts (perpendicularity < 0.25 mm / 0.01 in).

Technical Table (summary)
Description | Electric motor | Pneumatic
Part No. | Upon request (adjustable height table, support bench and automatic rotation included) | Upon request (adjustable height table, support bench and automatic rotation included)
Diameter range | 28 – 42.52 in / 711.2 – 1080 mm | 28 – 42.52 in / 711.2 – 1080 mm
Cutting capacity* | Up to 0.3 in / 8 mm | Up to 0.3 in / 8 mm
Blade rotational speed | Custom built machine upon request | Custom built machine upon request
Electric motor power | Custom built machine upon request | Custom built machine upon request
Voltage | 110 / 220 V | n/a
Frequency | 50 – 60 Hz | n/a
Air working pressure | n/a | Upon request
Max acoustic radiation | 90 dB | 95 dB
Vibration level | < 2.5 m/s2 | n/a
Unit weight | 1100 kg / 2425 lbs | 1100 kg / 2425 lbs
Machine dimensions | 2505 x 2030 x 950 mm (98.62 x 79.92 x 37.40 in) | 2505 x 2030 x 950 mm (98.62 x 79.92 x 37.40 in)
Packing dimensions | 2655 x 2116 x 1152 mm (104.53 x 83.30 x 45.35 in) | 2655 x 2116 x 1152 mm (104.53 x 83.30 x 45.35 in)
Packing weight | 1330 kg / 2932 lbs | 1330 kg / 2932 lbs
* Depending on blade type and tube material

Technical specifications

• Model: CC1100
• Brand: AXXAIR
• Tube OD range: 711 – 1080 mm (28 – 42.52 in)
• Cutting capacity: up to 0.3 in / 8 mm (depending on blade and material)
• Motor options: electric (1200 W) or pneumatic
• Voltage (electric): 110 / 220 V; Frequency: 50–60 Hz
• Clamping: concentric stainless-steel system with stainless jaws to avoid deformation and contamination
• Control/features: advanced blade control, penetration lever, distinctive rotation wheel, optional automatic rotation and clamping
• Options: adjustable-height table, support bench, automation
• Acoustic level: 90 dB (electric) / 95 dB (pneumatic)
• Vibration level (electric): < 2.5 m/s2
• Unit weight: 1100 kg (2425 lbs)
• Machine dimensions: 2505 x 2030 x 950 mm
• Packed dimensions: 2655 x 2116 x 1152 mm
• Packed weight: 1330 kg (2932 lbs)
