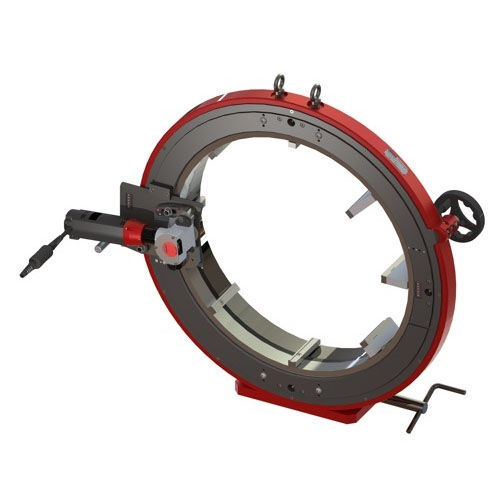

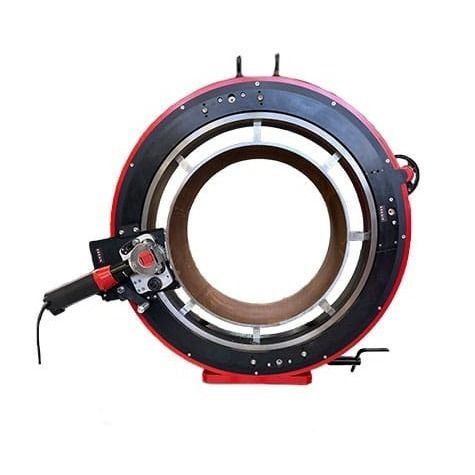

Stainless steel pipe cutter CC721

electricorbitalbench-mounted

Overview
Designed for large-diameter tube applications, the CC721 orbital tube cutting machine covers tube outer diameters from 18" to 28" (447–725 mm). Its orbital cutting process provides square, burr-free cuts while preserving tube geometry with no cutting-force distortion. Suitable for all steel grades and exotic alloys. Available with electric (standard or fast) or pneumatic 1200 W motor options.

Key features

• Orbital cutting range: 18 – 28" / 447 – 725 mm
• Square, burr-free cuts with minimal perpendicularity deviation (< 0.25–0.4 mm depending on blade)
• Stainless-steel concentric clamping system with multiple contact points to prevent tube distortion
• Motor options: electric standard, electric fast, pneumatic (electric variants: 1200 W, 110/220 V)
• Smooth rotation wheel and reduced-vibration design to extend blade life and improve cut quality
• Penetration lever for controlled and consistent blade engagement to improve safety and blade life

Consumables & accessories

• High-quality saw blades for burr-free square cuts (< 0.25–0.4 mm perpendicularity depending on blade)
• Cutting lubricant oil and paste
• Support benches and stands for handling long tubes

Specifications (matrix by motor type)
Description: Electric standard motor | Electric fast motor | Pneumatic
Part No.: 721FS15 / 721FS25 | 721FS19 / 721FS29 | 721PD
Diameter range: 18 – 28" / 447 – 725 mm | 18 – 28" / 447 – 725 mm | 18 – 28" / 447 – 725 mm
Cutting capacity*: Up to 0.6" / 15 mm | Up to 0.6" / 15 mm | Up to 0.6" / 15 mm
Blade rotational speed: 30 – 75 rpm | 95 – 280 rpm | 60 – 110 rpm
Electric motor power: 1200 W | 1200 W | n/a
Voltage: 110 / 220 V | 110 / 220 V | n/a
Frequency: 50 – 60 Hz | 50 – 60 Hz | n/a
Air working pressure: n/a | n/a | 43.5 – 87 psi / 3 – 6 bar
Max acoustic radiation: 90 dB | 90 dB | 95 dB
Vibration level: < 2.5 m/s2 | < 2.5 m/s2 | n/a
Unit weight: 256 kg / 564.4 lbs (all variants)
Machine dimensions: 1104 x 1077 x 315 mm (44.88 x 42.40 x 12.40")
Packing dimensions: 648 x 1220 x 1340 mm (25.51 x 48.03 x 52.76")
Packing weight: 256 kg / 564 lbs (all variants)
* Depending on saw blade type and tube material

Product advantages

• Concentric stainless-steel clamping with multiple contact points increases stability and prevents tube deformation
• Stainless-steel jaws protect tube surfaces from contamination
• Smooth rotation wheel reduces wear and improves blade life
• Penetration lever ensures consistent blade engagement, extending blade life and improving operator safety
• Short blade-to-jaws distance reduces vibration and improves cut quality

Technical specifications

• Model: CC721
• Tube OD range: 18 – 28" / 447 – 725 mm
• Max cutting capacity: up to 0.6" / 15 mm (depends on blade and material)
• Blade rotational speed ranges: 30–75 rpm (standard electric), 95–280 rpm (fast electric), 60–110 rpm (pneumatic)
• Electric motor power: 1200 W (electric variants)
• Voltage (electric): 110 / 220 V; Frequency: 50–60 Hz
• Air working pressure (pneumatic): 43.5 – 87 psi / 3 – 6 bar
• Acoustic radiation: 90 dB (electric) / 95 dB (pneumatic)
• Vibration level: < 2.5 m/s2 (electric variants)
• Unit weight: 256 kg / 564.4 lbs
• Machine dimensions: 1104 x 1077 x 315 mm
• Packing dimensions: 648 x 1220 x 1340 mm; Packing weight: 256 kg
