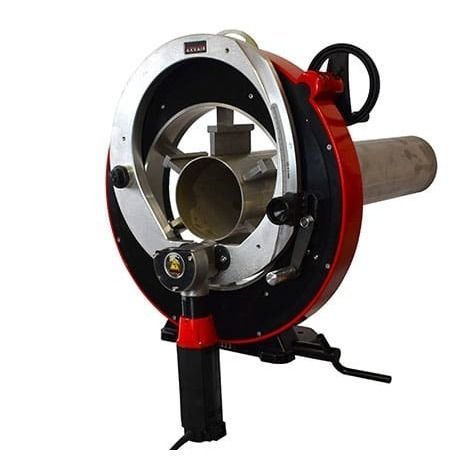

Stainless steel pipe cutter CC322

electricorbitalbench-mounted

Product overview
The CC322 is an orbital cutting machine for precise, burr-free preparation of tubes and pipes. Tube OD range: 5.563–12.750" / 141–328 mm. Available in electric (standard or fast) and pneumatic versions for workshop and field use. Equipped with concentric stainless-steel clamping and quick tube locking for consistent alignment and reduced distortion.

Product advantages

• AXXAIR CC concentric stainless-steel clamping system with multiple contact points increases cutting range and prevents tube deformation.
• Stainless-steel jaws protect tube surfaces from contamination.
• Distinctive rotation wheel ensures smooth rotation, extending blade life and improving cut finish.
• Penetration lever controls blade engagement for consistent, safe cutting and prolonged blade life.
• Short blade-to-jaws distance reduces vibration for better cut quality and longer blade life.

Consumables & accessories

• High-quality blades for burr-free square cuts (< 0.25 mm / 0.01" perpendicularity)
• Lubricant oil and paste
• Support benches for long tubes
• Automatic rotation and clamping system for higher repeatability and productivity
• Conversion kits for cutting, bevelling and welding operations

Specifications
DESCRIPTION: Electric standard | Electric fast | Pneumatic
Part No.: 322FS15 / 322FS25 | 322FS19 / 322FS29 | 322PD
Diameter range: 5.563–12.750" / 141–328 mm (all variants)
Cutting capacity*: up to 0.6" / 15 mm
Blade speed: 30–75 rpm | 95–280 rpm | 60–110 rpm
Electric motor power: 1200 W (electric variants)
Voltage: 110 or 220 V (electric variants)
Air pressure (pneumatic): 43.5–87 psi / 3–6 bar
Max acoustic radiation: 90 dB (electric) | 95 dB (pneumatic)
Vibration level: < 2.5 m/s2 (electric variants)
Unit weight: 71 kg / 157 lbs
Machine dimensions: 649 x 644 x 304 mm
Packing dimensions: 1000 x 570 x 870 mm
Packing weight: 100 kg / 220 lbs
* Depending on blade type and tube material

Technical specifications

• Model: CC322
• Available variants / part numbers: 322FS15, 322FS25, 322FS19, 322FS29, 322PD
• Tube OD range: 5.563–12.750" / 141–328 mm
• Cutting capacity: up to 0.6" / 15 mm
• Blade rotational speed: see variants
• Electric motor: 1200 W (electric variants)
• Voltage/Frequency: 110/220 V, 50/60 Hz (electric variants)
• Air working pressure: 43.5–87 psi / 3–6 bar (pneumatic)
• Weight and dimensions as above
