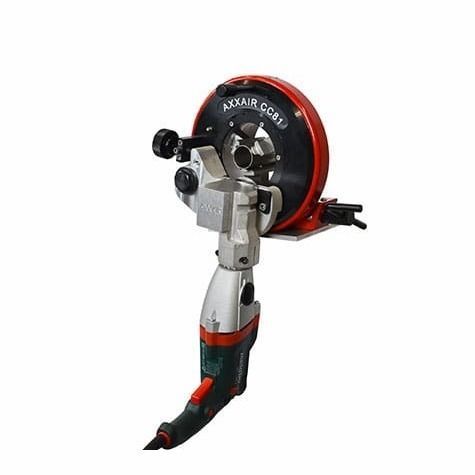

Stainless steel pipe cutter 81M series

electricorbitalbench-mounted

Overview Achieve precise, deformation-free cuts with the AXXAIR 81M orbital cutting machine. Engineered with stainless-steel concentric jaws, the unit prevents tube deformation, especially for thin-walled tubes, by securely clamping each piece for a consistent perpendicular cut. The orbital saw moves smoothly around the tube, ensuring repeatable precision that minimizes the gap between tube ends and reduces or eliminates the need for additional facing. Designed for flexibility, productivity and portability, the 81M is suitable for tube-to-tube alignment in automatic and orbital welding applications. While the 81M focuses only on cutting, other AXXAIR frames can be scaled for beveling and welding uses.

Product advantages

• ECO lighter-design range powered by a speed-adjustable 1300 W Metabo motor for adjustable cutting performance.
• Stainless-steel concentric clamping system with numerous contact points increases cutting range and quality while avoiding tube distortion.
• Stainless-steel jaws protect the tube surface from contamination.
• Short blade-to-jaws distance reduces vibration, extends blade life and improves cut quality.
• AXXAIR provides a range of blades delivering burr-free square cuts (perpendicularity precision < 0.25 mm / 0.01").

Resources Product brochure and user manual are available for the AXXAIR orbital cutting solutions (installation, operation and maintenance information).

Technical specifications

• DESCRIPTION: 81M
• Part No.: 81M11 – 81M21
• Diameter range: 0.25 – 3" / 5 – 78 mm
• Cutting capacity: 0.2" / 5 mm
• Blade rotational speed: 24 – 144 / 68 – 413 rpm
• Electric motor power: 1300 W
• Voltage: 110 or 220 V
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 92 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 15 kg / 33 lbs
• Machine dimensions: 263 x 246 x 236 mm / 10.35 x 13.62 x 9.29"
• Packing dimensions: 410 x 610 x 360 mm / 16.14 x 24.02 x 14.17"
• Packing weight: 20 kg / 44 lbs
