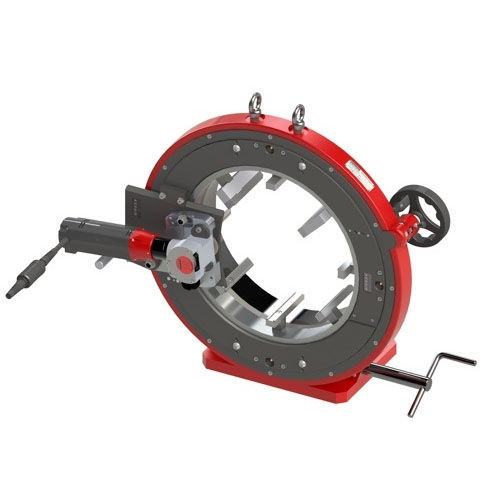

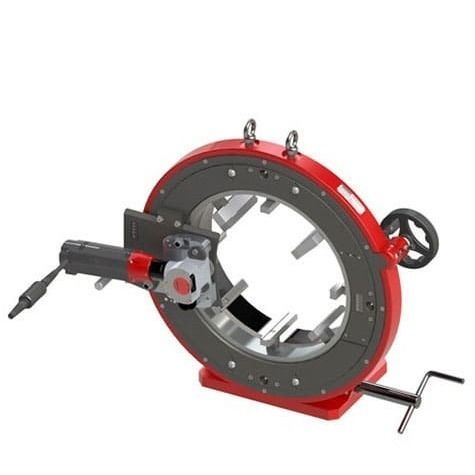

Stainless steel pipe cutter CC421

electricorbitalbench-mounted

Overview
The CC421 orbital cutting machine is engineered for precision orbital cutting of tubes and pipes from 8.625" to 16" (212–422 mm). Using a rotating saw blade that travels concentrically around the tube, it produces square, burr-free cuts while preserving roundness and minimizing distortion. Suitable for carbon steel, stainless steel and exotic alloys, the CC421 delivers repeatable results in industrial environments.

Power & design
Available with electric (standard or fast) or pneumatic drive. Electric versions use 1200 W motors (110/220 V, 50–60 Hz). The stainless-steel concentric clamping system with multiple contact points secures the tube and protects against contamination. A smooth rotation wheel, short blade-to-jaw distance and a penetration lever reduce vibration, extend blade life and improve operator safety and productivity.

Product advantages

• AXXAIR CC range with electric or pneumatic drives and concentric stainless-steel clamping for high cutting accuracy and reduced tube deformation.
• Stainless-steel jaws protect tube surfaces from contamination.
• Smooth rotation wheel increases blade life and cut quality.
• Penetration lever ensures consistent blade engagement and easier operation.
• Short blade-to-jaw distance reduces vibration and improves perpendicularity.

Consumables & accessories

• High-quality saw blades for burr-free square cuts (< 0.4 mm / 0.015" perpendicularity; certain blades < 0.25 mm / 0.01").
• Cutting lubricant oil and paste.
• Support benches for long tubes.

Technical specifications table
Description | Electric standard motor | Electric fast motor | Pneumatic
Part No. | 421FS15 / 421FS25 | 421FS19 / 421FS29 | 421PD
Diameter range | 8.625 – 16" / 212 – 422 mm | 8.625 – 16" / 212 – 422 mm | 8.625 – 16" / 212 – 422 mm
Cutting capacity* | Up to 0.6" / 15 mm | Up to 0.6" / 15 mm | Up to 0.6" / 15 mm
Blade rotational speed | 30 – 75 rpm | 95 – 280 rpm | 60 – 110 rpm
Electric motor power | 1200 watt | 1200 watt | n/a
Voltage | 110 / 220 volt | 110 / 220 volt | n/a
Frequency | 50 – 60 Hz | 50 – 60 Hz | n/a
Air working pressure | n/a | n/a | 43.5 – 87 psi / 3 – 6 bar
Max acoustic radiation | 90 dB | 90 dB | 95 dB
Vibration level | < 2.5 m/s2 | < 2.5 m/s2 | n/a
Unit weight | 195 kg / 429.9 lbs | 195 kg / 429.9 lbs | 195 kg / 429.9 lbs
Machine dimensions | 31.57 x 32.99 x 12.40" / 802 x 838 x 315 mm | 31.57 x 32.99 x 12.40" / 802 x 838 x 315 mm | 31.57 x 32.99 x 12.40" / 802 x 838 x 315 mm
Packing dimensions | 23.62 x 40.16 x 44.88" / 600 x 1020 x 1140 mm | 23.62 x 40.16 x 44.88" / 600 x 1020 x 1140 mm | 23.62 x 40.16 x 44.88" / 600 x 1020 x 1140 mm
Packing weight | 410 lbs / 186 kg | 410 lbs / 186 kg | 410 lbs / 186 kg
* Depending on type of saw blade used and tube material

Technical characteristics

• Model: CC421
• Tube outside diameter range: 8.625" – 16" (212 – 422 mm)
• Max cutting capacity: up to 0.6" / 15 mm (depending on blade and material)
• Available drives: Electric (standard & fast) and Pneumatic
• Electric motor power: 1200 W (electric versions)
• Electric voltage: 110 / 220 V (50 – 60 Hz)
• Pneumatic air pressure (pneumatic model): 43.5 – 87 psi / 3 – 6 bar
• Blade speeds: electric standard 30–75 rpm; electric fast 95–280 rpm; pneumatic 60–110 rpm
• Unit weight: 195 kg / 429.9 lbs
• Machine dimensions (L x W x H): 31.57 x 32.99 x 12.40" / 802 x 838 x 315 mm
• Packing dimensions: 23.62 x 40.16 x 44.88" / 600 x 1020 x 1140 mm
• Packing weight: 410 lbs / 186 kg
