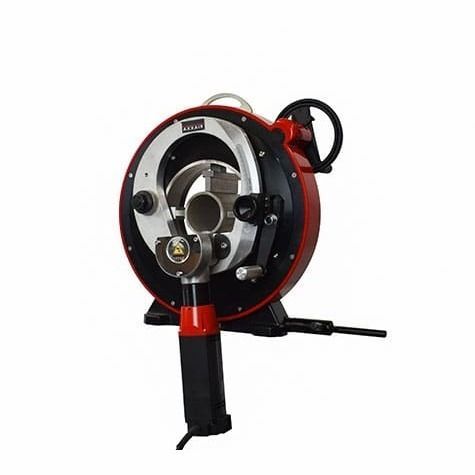

Stainless steel pipe cutter CC172

electricorbitalbench-mounted

Overview
The CC172 is a versatile orbital cutting machine designed for precise, burr-free preparation of tubes and pipes. Suitable for steel and exotic alloys, it combines portability and ergonomic handling with a robust construction for consistent industrial performance. The unit features quick tube clamping and a smooth cutting cycle to increase productivity and ensure perfect preparation prior to welding or downstream operations.

Diameter range
Tube outer diameter: 16 – 173 mm / 0.625 – 6.625 in

Specifications (summary)
Description - Standard electric motor | Fast electric motor | Pneumatic
Reference - 172FS15 / 172FS25 | 172FS19 / 172FS29 | 172PD
Diameter range - 16 – 173 mm | 16 – 173 mm | 16 – 173 mm
Cutting capacity* - Up to 15 mm | Up to 15 mm | Up to 15 mm
Blade speed - 30 – 75 rpm | 95 – 280 rpm | 60 – 110 rpm
Electric motor power - 1200 W | 1200 W | n/a
Voltage - 110 or 220 V | 110 or 220 V | n/a
Frequency - 50 / 60 Hz | 50 / 60 Hz | n/a
Air supply pressure - n/a | n/a | 3 – 6 bar (43.5 – 87 psi)
Max acoustic emission - 90 dB | 90 dB | 95 dB
Vibration level - < 2.5 m/s2 | < 2.5 m/s2 | n/a
Unit weight - 51 kg / 112 lbs | 51 kg / 112 lbs | 51 kg / 112 lbs
Machine dimensions - 493 x 566 x 304 mm
Packed dimensions - 630 x 450 x 720 mm / Packed weight - 68 kg / 150 lbs
* Depending on blade type and tube material

Product advantages

• AXXAIR CC range (standard or high-speed electric and pneumatic options) uses a stainless-steel concentric clamping system with multiple contact points to increase cutting range and quality while preventing tube deformation.
• Stainless-steel jaws prevent contamination of the tube.
• Distinctive rotation wheel provides smooth rotation, extending blade life and improving cut quality.
• Penetration lever engages the saw blade for consistent, effortless penetration and cutting, improving blade life, safety and ease of use.
• Short distance between blade and jaws reduces vibration, extends blade life and enhances cut quality.

Consumables & accessories

• High-quality blades for burr-free square cuts (< 0.25 mm / 0.01 in perpendicularity)
• Lubricant oil and paste
• Support stands for long tubes
• Automatic rotation and clamping system for increased repeatability and productivity
• Conversion kits enabling three operations: cutting, bevelling and welding

Characteristics / technical specifications

• Model: CC172
• Tube outer diameter range: 16 – 173 mm (0.625 – 6.625 in)
• Maximum cutting capacity: up to 15 mm (depending on blade and material)
• Blade speeds (variants): 30–75 rpm (standard electric), 95–280 rpm (fast electric), 60–110 rpm (pneumatic)
• Electric motor power: 1200 W (electric variants)
• Voltage: 110 or 220 V (electric variants)
• Frequency: 50 / 60 Hz
• Air pressure (pneumatic): 3 – 6 bar (43.5 – 87 psi)
• Weight: 51 kg / 112 lbs
• Machine dimensions: 493 x 566 x 304 mm
• Packaged weight: 68 kg / 150 lbs
• Max sound level: up to 90–95 dB (variant dependent)
