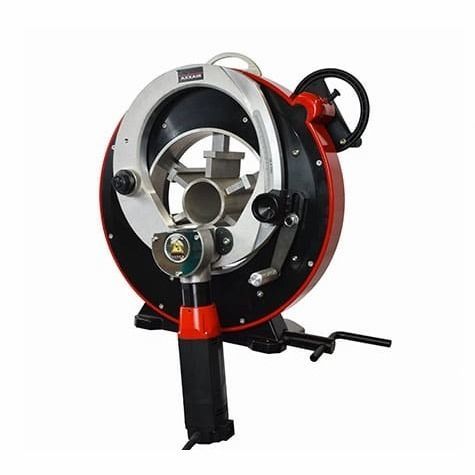

Stainless steel pipe cutter CC222

electricorbitalbench-mounted

Product Overview
The CC222 is an orbital cutting machine engineered for precision tube and pipe preparation in industrial environments. It produces burr-free, square cuts on carbon steel, stainless steel and exotic alloys. The design emphasises portability and ergonomic operation while maintaining consistent cutting quality across the working diameter range.

Key Features

• Stainless-steel concentric clamping system with multiple contact points to widen the cutting range and prevent tube distortion.
• Stainless-steel jaws to protect tube surfaces from contamination.
• Distinctive rotation wheel for smooth rotation, improving blade life and cut quality.
• Penetration lever for controlled, consistent blade engagement, enhancing safety and blade longevity.
• Short blade-to-jaws distance to reduce vibration and improve cut precision.

Consumables & Accessories

• High-quality saw blades for burr-free square cuts (< 0.25 mm / 0.01" perpendicularity).
• Lubricant oil and paste.
• Support benches for longer tubes.
• Automatic rotation and clamping system for higher repeatability and productivity.
• Conversion kits for three operations: cutting, bevelling and welding preparation.

Specifications (table)
Description | Electric standard motor | Electric fast motor | Pneumatic
Part No. | 222FS15 / 222FS25 | 222FS19 / 222FS29 | 222PD
Diameter range | 2.375 – 8.625 in / 55 – 228 mm | 2.375 – 8.625 in / 55 – 228 mm | 2.375 – 8.625 in / 55 – 228 mm
Cutting capacity* | Up to 0.6 in / 15 mm | Up to 0.6 in / 15 mm | Up to 0.6 in / 15 mm
Blade rotational speed | 30 – 75 rpm | 95 – 280 rpm | 60 – 110 rpm
Electric motor power | 1200 W | 1200 W | n/a
Voltage | 110 or 220 V | 110 or 220 V | n/a
Frequency | 50 / 60 Hz | 50 / 60 Hz | n/a
Air working pressure | n/a | n/a | 43.5 – 87 psi / 3 – 6 bar
Max acoustic radiation | 90 dB | 90 dB | 95 dB
Vibration level | < 2.5 m/s2 | < 2.5 m/s2 | n/a
Unit weight | 59 kg / 130 lbs | 59 kg / 130 lbs | 59 kg / 130 lbs
Machine dimensions | 21.57 x 23.38 x 11.96 in / 548 x 594 x 304 mm | 21.57 x 23.38 x 11.96 in / 548 x 594 x 304 mm | 21.57 x 23.38 x 11.96 in / 548 x 594 x 304 mm
Packing dimensions | 39.37 x 22.44 x 34.25 in / 1000 x 570 x 870 mm | 39.37 x 22.44 x 34.25 in / 1000 x 570 x 870 mm | 39.37 x 22.44 x 34.25 in / 1000 x 570 x 870 mm
Packing weight | 192 lbs / 87 kg | 192 lbs / 87 kg | 192 lbs / 87 kg
*Depending on type of saw blade used and tube material

Technical specifications

• Model: CC222
• Brand: AXXAIR
• Tube OD range: 2.375 – 8.625 in / 55 – 228 mm
• Maximum cutting depth: up to 0.6 in / 15 mm (depends on blade and material)
• Drive options: electric standard, electric fast, pneumatic
• Blade speeds: 30–75 rpm (standard), 95–280 rpm (fast), 60–110 rpm (pneumatic)
• Electric motor power: 1200 W (electric versions)
• Voltage: 110/220 V; Frequency: 50/60 Hz (electric versions)
• Air working pressure (pneumatic): 43.5–87 psi / 3–6 bar
• Acoustic level: up to 95 dB depending on version
• Vibration level: < 2.5 m/s2 (electric)
• Unit weight: 59 kg / 130 lbs
• Machine dimensions: 548 x 594 x 304 mm
• Packing dimensions: 1000 x 570 x 870 mm; Packing weight: 87 kg / 192 lbs
