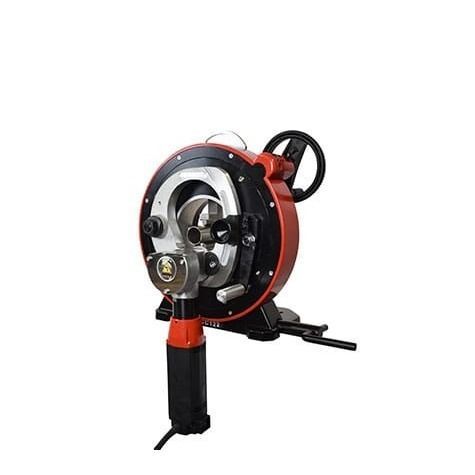

Stainless steel pipe cutter CC122

electricorbitalhandheld

Overview
The CC122 is a versatile orbital tube cutting machine designed for precision and efficiency in tube and pipe preparation for industrial applications. It produces burr-free, square cuts on carbon steel, stainless steel and exotic alloys. Lightweight and ergonomic for portability, with a durable construction for consistent performance.

TUBE OD RANGE
0.25 – 4.5" / 5 – 119 mm

Key features
The AXXAIR CC range (standard or high-speed electric or pneumatic motors) incorporates quick tube clamping and a smooth cutting action that improves productivity and ensures correct preparation for welding and downstream operations.

Product Advantages

• Stainless-steel concentric clamping system with multiple contact points to increase cutting range and avoid tube distortion.
• Stainless-steel jaws protect tubes from contamination.
• Distinct rotation wheel ensures smooth rotation, reducing vibration and extending blade life.
• Penetration lever engages the saw blade for consistent penetration and cutting, improving safety and blade longevity.
• Short blade-to-jaws distance reduces vibration and improves cut quality.

Consumables & Accessories

• High-quality blades for burr-free square cuts (< 0.25 mm / 0.01" perpendicularity).
• Lubricant oil and paste.
• Support benches for longer tubes.
• Automatic rotation and clamping system for higher repeatability and productivity (optional).
• Conversion kits for cutting, bevelling and orbital welding operations (optional).

Specifications (table)
Description | Electric standard motor | Electric fast motor
Part No. | 122FS15 / 122FS25 | 122FS19 / 122FS29
Diameter range | 0.25 – 4.5" / 5 – 119 mm | 0.25 – 4.5" / 5 – 119 mm
Cutting capacity* | Up to 0.6" / 15 mm | Up to 0.6" / 15 mm
Blade rotational speed | 30 – 75 rpm | 95 – 280 rpm
Electric motor power | 1200 watt | 1200 watt
Voltage | 110 or 220 volt | 110 or 220 volt
Frequency | 50 / 60 hz | 50 / 60 hz
Air working pressure | n/a | n/a
Max acoustic radiation | 90 dB | 90 dB
Vibration level | < 2.5 m/s2 | < 2.5 m/s2
Unit weight | 44 kg / 97 lbs | 44 kg / 97 lbs
Machine dimensions | 17.44 x 21.29 x 11.96" / 443 x 541 x 304 mm | 17.44 x 21.29 x 11.96" / 443 x 541 x 304 mm
Packing dimensions | 24.80 x 17.72 x 28.35" / 630 x 450 x 720 mm | 24.80 x 17.72 x 28.35" / 630 x 450 x 720 mm
Packing weight | 136.7 lbs / 62 kg | 136.7 lbs / 62 kg
* Depending on type of saw blade used and tube material

Technical specifications

• Model: CC122
• Manufacturer: AXXAIR
• Diameter range (OD): 5 – 119 mm (0.25 – 4.5")
• Maximum cutting depth: up to 15 mm (0.6") depending on blade and material
• Blade rotational speed (standard): 30–75 rpm
• Blade rotational speed (high speed): 95–280 rpm
• Motor power: 1200 W
• Voltage: 110 or 220 V; Frequency: 50/60 Hz
• Unit weight: 44 kg
• Machine dimensions: 443 x 541 x 304 mm
• Max acoustic radiation: 90 dB
• Vibration level: < 2.5 m/s2
• Available variants / part numbers: 122FS15, 122FS25, 122FS19, 122FS29
