Straight Connector, Female Thread
Straight Connector, Male Thread
|
|
The Han® R 23 series comprises circular connectors with high contact densities.
The inserts with 6, 9, 12, 17 or 19 contacts plus a PE contact are available with crimp, solder or screw terminals. The connectors are rated for 7 ampere or 15 ampere at 50 volt.
|
|
|
The SS Series and SSC Series short plugs feature an innovative design and lightweight, miniature construction for applications requiring space saving and high pin density configurations. The 102 series, for example, is available with up to nine pins in a 9mm diameter.
|
|
FEATURES
■ Rugged aluminium body to ensure long service life in the
harshest environment.
■ Optimum space and weight saving whilst achieving maximum
strength.
■ Option of either size 22 or 26 gold plated crimp contact or PCB
contact available.
■ Environmental sealing from interfacial seal and rear grommet.
■ Positive locking mechanism with locked colour indicators.
■ 6 colours coded keyway orientations.
■ Boot termination feature.
■ Conductive black zinc plating.
|
|
|
|
|
|
ODU ROB:
- Connector for industrial robot systems and units
- Simple installation because the contacts lock in place
- IP 67 when inserted
- Flammability class UL 94-V0
- Cable housing can be rotated in any direction
- Pilot contacts are possible
- Very good electric characteristics (operating voltage up to 800VAC)
- Cable housing can be rotated in any direction- straight or
right-angled cable outlets
- Simple packaging of the cable housing
- Cost savings with system solution (connector & cable)
ODU DOCK:
- Connectors for robots, docking systems and tool changing systems
- 4 sizes
- Connector diameters from 28 to 75 mm
- Interchangeable contacts
- Contacts fastened with metal clip (barbed hook)
- ODU springwire contacts for high contact stability
- Version with quick-change head available for extremely
high number of mating cycles
Heavy Duty Connectors:
- Up to 1,500 A
- Up to 252 contact positions
- More than 100 different pole images
- Threaded and bayonet locking
- ODU springwire contacts for high contact stability
- Suitable for the most hostile environmental conditions
- Very long life span
- High packing density
- Mechanically robust
|
|
|
|
|
|
Connectors for signal transmission – uninterrupted connections even under adverse ambient conditions: DN Metal and DN Plastics connectors from Schaltbau.
With the DN Series the proven spring-loaded contact technology from military communication will set new standards for signal transmission when it comes to industrial applications. Our water tight connectors ensure uninterrupted connection in harsh environments. The DN Series connectors feature bayonet interlock. The spring-loaded contacts with self-cleaning faces, patented by Schaltbau, guarantee a long design life and high resistance to shock and vibration. The constant low contact resistance provides for high contact reliability even with low voltages and currents within a wide temperature range.
The modular design of the DN Metal Series allows for additional shielding of the connector against electromagnetic influences.
Schaltbau DN Series connectors: The cost-effective and technologically attractive alternative to commercially available push-pull connectors!
|
|
|
|
|
|
SAL Connectors
The dimensions and construction of the CONEC SAL connector series comply with IEC 61076-2-101.
They are used in many applications in the field of automation technology for signal transmission, power transmission or for data communication in field bus technology.
...with overmoulded cables
reduce installation costs and save time drastically, through the use of connectors with integral wires.
The choice of material and the construction of the connector enable it to be used in a dirty and damp industrial environment.
...for special requirements
are often made of special materials concerning their chemical resistance and temperature stability. CONEC has developed special products for these areas. Special materials are available for a temperature range of 125°C for 6000 h.
Field attachable connectors ...
can be assembled freely and are often required for individual cable lengths, e.g. for the construction of special purpose machines.CONEC offers 4 and 5-pin models here in an axial and angled construction for connectors and adapters. In the angled construction the cable outlet is adjustable in a 90° pitch to the pin layout.
Chassis connectors
Installation flanges are used to produce an M12x1 connection on the device. A newly developed modular system makes it possible to produce a wide variety of combinations among one another.
Fieldbus technology ...
has increased dramatically in the industrial sector over the last few years. CONEC offers connectors for Profibus DP and Industrial Ethernet. Integral M12x1 connectors with corresponding pin layout coding (in acc. to IEC 61076-2-101 standards) are available for both bus systems.
|
|
EPIC® LS1 A1 6 contacts
The power connectors LS1 with the contact configurations 5+PE and 3+PE+4 are designed to be used in servo motors and servo harnessings
Application range
Plant engineering and construction
Servo drives and Servo harnessings
Technical Data
Rated voltage in V
630 V
Rated impulse Voltage
6 kV
Rated current in A
25 A
Contact resistance
< 4 mOhm
Contacts
Brass, gold plated
Number of contacts
5 + PE
Termination methods
Crimp termination: 0.5 - 2.5 mm²
Material
Housing: zinc die-casting nickel-plated Insert: PA, Sealing: FPM
Degree of protection
IP68 (10h / 1m)
Cycle of mechanical operation
500
Range of temperature
-25 °C - +125 °C
VDE tested
VDE-REG.-No. 25
Pollution degree
3
Product features
Panel mount base, straight entry
For male contacts
Housing with assembled insulation body
|
|
For sixty years, the HCC Industries family of companies has been providing the technological know-how to meet the unique requirements of the defense and aerospace industries, as well as those customers in other industries using circular connectors in their applications.
NEW from Ametek SCP, a range of Rugged Gigabit Ethernet Connectors. Designed for use in very harsh environments and available in D38999 and MIL-C-24231 shell configurations. Certified by ETL to TIA/EIA 568 CAT 5E and CAT 6. PATENT PENDING.
|
|
|
|
|
|
Current Rating: 3 amps max
Dielectric Withstanding Voltage:
600 VAC RMS
Insulation Resistance:
5000 Meg ohms min @ 500 VDC
Contact Resistance:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating Force:
Forces not to exceed 6 oz/contact
Temperature Cycling:
-55 ° C to +125 ° C, 5 cycles
Humidity (Mated):
IAW MIL-STD-1344, Method 1002.2, Type II, Omit Steps 7A & 7B
Vibration:
IAW-MIL-STD-1344, Method 205.1, Test Condition IV, 20 g's
Mechanical Shock:
IAW-MIL-STD-1344, Method 2004.1, Test Condition E, 50 g's
Durability:
500 cycles
Contact Resistance after Durability:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating after Durability:
Forces not to exceed 6 oz/contact
Salt Spray:
48 hrs IAW-MIL-STD-1344, Method 1001.1, Test Condition B
Low Level Contact Resistance after Salt Spray:
28 milliohms max (2.8 mv) max @ 100 milliamps
Contact Resistance after Salt Spray:
28 milliohms (70 mv) max @ 2.5 amps
Mating/Unmating force after Salt Spray:
Forces not to exceed 6 oz/contact
Contact Retention after Salt Spray:
Minimum of 5 lbs contact retention
Thermal Vacuum Out gassing:
NASA SP-R-0022
Solder Heat & Contact Retention:
360 ° C for 10 sec. & contacts must withstand 5 lbs retention force
Solder ability:
MIL-STD-202, Method 208
|
|
|
The M12 x 1 round connector family from ESCHA provides a wide range of robust and sophisticated components. A choice of pre-assembled and premoulded versions, flange connectors as well as field-wireable connectors, ranging from 3- to 12-pole versions are available for your application.
|
|
|
Hypertac circular connector range covers industrial market (through its M23, M40, M58 Series Metallic, Plastic and Inox), medical market (Push Pull D Series and Hypergrip with IP67 and shielded capability in cable clamp or overmolded version), mil-aero market (Future Combat Soldier Connectors, High Speed with filter capabilities and HBN connectors) and railway market (Balise connectors, M23 Series, Car-to-car Couplers). All applications can be equipped with custom solutions made on customer's requirement.
|
|
INDUSTRIAL 5015 CONNECTORS AND CABLE ASSEMBLIES
Cooper Interconnect is pleased to announce the release of our new series of Industrial 5015 connectors and cable assemblies. These heavy duty circular connectors conform to the MIL-DTL-5015 specification with similar reliability and performance.
Originally designed for military equipment, the industrial 5015 series is widely used in various industries due to its low cost and strong performance. The Industrial 5015 connector is used in products that require high levels of reliability such as medical equipment, electric cars, industrial building machinery, motors, sensors, robotics, heavy equipment, solar voltaics, etc.
Connector Styles
There are five basic connector styles. C3100, C3101, C3102, C3106 and C3108. Each style relates directly to its military counterpart, MS3100, MS3101, MS3102, MS3106 and MS3108. The Industrial 5015 products are constructed to the same demanding standards and physical dimensions as the military version.
|
|
|
|
|
|
Ex Connectors
Simple To Use Quick To Terminate
Temporary but safe disconnection of power is critical in many industries. To meet this requirement Hawke International has introduced a new series of EExd Connectors that are ATEX approved, easy to use and exceptionally robust. They permit the safe and rapid service, repair and replacement of key plant, or provide quick connection to temporary equipment. Their application is beneficial in capital-intensive processes where minimum downtime is essential.
The new connectors are ideal for Zone 1 and Zone 2 explosive environments commonly found in oil and gas exploration, production and process plants. However, their features also offer benefits in Zone 21 and Zone 22 explosive dust environments, or in harsh and hostile non-explosive applications.
In compliance with the ATEX Directive (94/9/EC), the new design retains many of the best features of Hawke's previous connector range, but in addition adds innovations based on user feedback. The heavy duty, maintenance free stainless steel body construction is retained, along with the acclaimed Acme mating thread; enabling quick connection whilst preventing thread binding or galling.
|
|
|
|
|
|
Features and Benefits
- Larger coupling ring for ease of mounting
- Mating assurance indicator
- Epoxy sealed receptacle shells for positive reliability
- NEMA 6P rating
- Compatible with European DIN standard Prox switches
- Superior strain relief
Reference Information
- UL File No.: E81982
Mechanical
- Cable: ODVA approved cable
- Receptacle Body: Nickel plated for improved corrosion resistance
- Insert Material: UL recognized plastic�exceptional chemical resistance and electrical support
- Coupling Nut: Aluminum with Nickel plating
- Contacts: Gold plated Copper Alloy
- Molded Connector: PVC
- Plug Seal: Nitrile (BUNA-N) O-ring
Physical
- Corrosion: Nickel finish provides 300-hour salt spray protection per MIL-STD 202 method 101
- Vibration: Complies with MIL-STD 202F, test method 204, test condition B
- Rainproof: Meets rain proof requirements of UL rain test as specified in UL STD 514. Conforms to NEMA 6P enclosure requirements and meets watertight performance rating of IP67.
- Temperature: -40 to +90�C
|
|
EMI/RFI Filtered Connectors
Various - EMI/RFI Filtered ConnectorsFilter Connectors. The concern over interference in sophisticated electronic equipment, now operating on lower power levels, has seen an increased use of in-line filter devices to suppress either the effect of externally generated interference, or to reduce emissions from the equipment itself.
AB Connectors have engineered solutions which can be adapted to may of the market standard connector ranges, making retro-fitting to existing equipment a quick and effective solution, to EMI/RFI problems.
As an alternative AB Connectors produce Interface Filter Adaptors which simply plug in between existing connectors, thereby making modification in the field a simple and cost effective option.
Connector Types
MIL-C-5015
MIL-C-38999
MIL-C-26482 Series 1
Further details on the Various range available on request from the factory.
|
|
|
Mencom Corporation manufacturers a wide range of PVC, PUR, and Hi-Flex quick disconnect cables. The product lines include; standard MIN (M18,) MICRO (M12,) and NAN (M8) cord sets and field wireable connectors. In addition to the cord sets, Mencom also offers a full line of mating receptacles, cable glands, and other accessories.
|
|
|
|
|
|
Current Rating: 3 amps max
Dielectric Withstanding Voltage:
600 VAC RMS
Insulation Resistance:
5000 Meg ohms min @ 500 VDC
Contact Resistance:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating Force:
Forces not to exceed 6 oz/contact
Temperature Cycling:
-55 ° C to +125 ° C, 5 cycles
Humidity (Mated):
IAW MIL-STD-1344, Method 1002.2, Type II, Omit Steps 7A & 7B
Vibration:
IAW-MIL-STD-1344, Method 205.1, Test Condition IV, 20 g's
Mechanical Shock:
IAW-MIL-STD-1344, Method 2004.1, Test Condition E, 50 g's
Durability:
500 cycles
Contact Resistance after Durability:
26 milliohms (65 mv) max @ 2.5 amps
Mating/Unmating after Durability:
Forces not to exceed 6 oz/contact
Salt Spray:
48 hrs IAW-MIL-STD-1344, Method 1001.1, Test Condition B
Low Level Contact Resistance after Salt Spray:
28 milliohms max (2.8 mv) max @ 100 milliamps
Contact Resistance after Salt Spray:
28 milliohms (70 mv) max @ 2.5 amps
Mating/Unmating force after Salt Spray:
Forces not to exceed 6 oz/contact
Contact Retention after Salt Spray:
Minimum of 5 lbs contact retention
Thermal Vacuum Out gassing:
NASA SP-R-0022
Solder Heat & Contact Retention:
360 ° C for 10 sec. & contacts must withstand 5 lbs retention force
Solder ability:
MIL-STD-202, Method 208
|
|
Audio Miniature Bayonet Lock Connectors
AB06 Series. AB06 connectors are a development of the established AB05 range and are particularly suitable for tinsel cordage applications in audio equipment.
Designed to the requirements of the Royal Signals and Radar Establishment, AB06 connectors are available in shell sizes 8, 10 and 12, and offer all the performance characteristics and design features of AB05 (Pattern 105) connectors. An alternative 'snatch' type coupling nut for quick release applications is available in shell size 10.
Accessories include straight polychloroprene sleeves for tinsel cordage, 90° outlets, and protective caps.
|
|
|

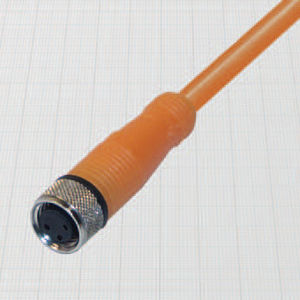

The small yet robust M8 x 1/Ø8 mm round connector is ideally suited for compact and space limited industrial applications. Please choose from pre-assembled and fully encapsulated versions, flange and field-wireable connectors, ranging from 3 to 6-pole versions.
|
|
|
Mencom Corporation manufacturers a full line of receptacles for mating with quick disconnect cord sets. The product line includes front mount, rear mount, PCB mount, through mount, and solder type receptacles. The receptacles can be ordered with either Metric, PG, or NPT threads.
|
|
|
The quick-connect S12 x 1 is fully compatible with your terminals. You can replace the standard M12 round connector easily without having to adapt the complement. The S12 x 1 is a quick and safe solution for your industrial application.
|
|
QUIK-LOC 600 VOLT CONNECTORS
Electrical Parameters
3 or 4 contacts; with or without pilot circuit contacts. #8 AWG through 500 MCM cable. Up to 600 Volts; 625 Amps.
The Quik-Loc Connector was designed for service under the most severe mining conditions. Constructed of resilient neoprene and sturdy neoprene covered alloy castings, it is tough, watertight, corrosion-resistant — practically indestructible.
ELECTRICAL PARAMETERS 3 POWER GROUND AND 2 PILOT CONTACTS, #8 THROUGH 500 MCM CABLE UP TO 1000 VOLTS; 500 AMPS.
|
|
|
150°C round connector by ESCHA. Thermal load is an increasingly relevant issue concerning modern machines and systems. In order to comply as well with requirements in the field of connection technology, ESCHA has developed a new family of round connectors which sets standards with respect to thermal load. A permanent service temperature between -20°C and +150°C enables a broad ranged application without additional protection against high temperatures. Beyond the permanent service temperature, extreme thermal loads of up to +200°C in the application can be tackled. For the standard housing types M8x1 and M12x, ESCHA developed different polarities in order to offer a comprehensive solution with the new product family. The new connector type features degree of protection IP65 and thus fulfills the requirements of your application .
|
|
M1 and M3 Series universal industrial connectors are designed for safety and reliability in harsh ambient conditions. Vibration, dust, aggressive liquids or vapours are often the cause of failures and serious safety problems. Sealed to IP67, our M1 and M3 Series circular connectors are dustproof, pressure proof and water protected when mated. They are
also resistant to the effects of most acids and alkalines as well as the extremes of temperature.
You can use our M1 and M3 Series connectors for various applications, especially where high reliability under harsh environmental conditions is important. Typical applications are: mining, ship-building, power plant construction, mechanical and traffic engineering, environmental technology or food processing. We hold numerous official approvals.
|
|
M1 and M3 Series universal industrial connectors are designed for safety and reliability in harsh ambient conditions. Vibration, dust, aggressive liquids or vapours are often the cause of failures and serious safety problems.
Sealed to IP67, our M1 and M3 Series circular connectors are dustproof and water pressure-tight. They are also resistant to the effects of most acids and alkalines as well as the extremes of temperature.
Sealed to IP67 when not mated: By assembling additional O-rings between connector shell and contact insert as well as between contacts and contact insert, the M1 Series connectors are sealed to IP67 (immersion protected).
Thus protected, the connectors are water tight even when not mated, and ingress of water into electric equipment through the connector is not possible.
|
|
- Dynamic IP68/IP69 - Waterproof connectors in mated an unmated conditions
- Design based on MIL-DTL-26482 connectors or equivalents such as BS 9522 FOO17, NFC93422, HE301B, VG 95328.
- Protection of electronics inside the equipments/boxes in case of maintenance, unmated conditions or cable damage.
- Salt spray resistance:500h
- Temperature range: -40°C +105°C
- Mechanical performance: 250 matings/unmatings
- RoHS compliant
|
|
|
Wide range of parts, up to 14 poles, with and without 360° shielding. Easy mounting, compatible mating acc. to IEC 60130-9. Protection degrees IP 40 and IP 68, special types for UMTS 3G antenna control systems acc. to AISG in IP 67. For signal and load currents up to 5 A.
|
|
|
Miniature connectors (also referred to as "Mini DIN"), including S-VHS, and DIN connectors according to DIN 455321, mating compatible to IEC 60130-9. 3-8 poles. For signal and load currents up to 4 A.
|
|
|
The pre-assembled and pre-moulded M23 x 1 round connectors are ideally adapted to our M12 x 1 actuator/sensor boxes for which they are used as connection cable. There are 12- and 19-pole versions with various pin configurations as well as field-wireable 12-, 16-, and 19-pole connector types.
|
|
|
|
