Electrical power supply connector PRC 20/3-C1-FT25-MC2,5 SET50

mains power supplywire-to-wirecircular

Product description

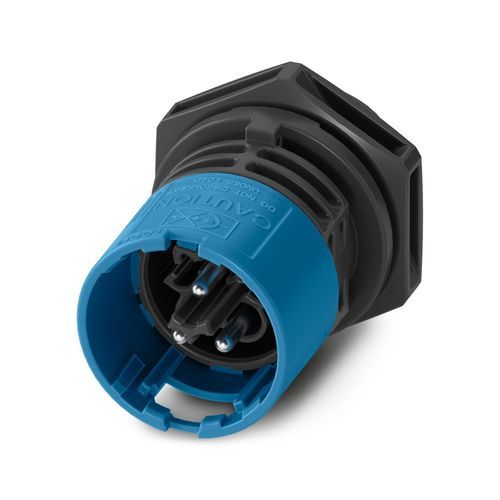

Front-mount device connector PRC 20/3-C1-FT25-MC2,5 SET50. Black housing, 3 positions (2+PE), designed for crimp connection. Conductor cross-section: 0.5–2.5 mm². Rated voltage up to 600 V AC/DC depending on standard; rated current 20 A. Release can be operated with a tool or by hand.

Product properties

• Product type: Panel feed-through (front mounting)
• Product family: PRC 20
• Number of positions: 3 (2+PE)
• Coding: 3-C1
• Protection class (insulation): II

Dimensions

• Dimensional drawing available
• Width: 34 mm
• Height: 38.4 mm
• Length: 52 mm

Electrical properties

• Rated voltage: 400 V (III/2.00) according to IEC 61984
• 400 V AC (III/2.00) according to IEC 61535
• 600 V AC / DC (III/2.00) according to UL 2238 / UL 2237
• 500 V DC (III/2.00) according to IEC 61535
• Rated current: 20 A (with 2.5 mm² conductor cross-section according to IEC 61535)

Material specifications

• Housing color: black (RAL 9005)
• Housing material: PPE
• Contact carrier material: PPE
• Cable gland material: PC
• Contact material: CuZn (contacts, Pb < 0.1)

Cable / line

• Single wire cross section: 0.5 mm² – 2.5 mm²

Environmental and real-life conditions

• Degree of protection: IP66
• IP68 (2 m / 2 h)
• IP69

Notes

• Release setting options: 1. with a tool or 2. by hand
• For assembly information, refer to the packing slip

Commercial data

• Item number: 1468373
• Packing unit: 50 pc
• Minimum order quantity: 50 pc
• Product key: ABLHAC
• GTIN (EAN): 4063151866129
• Weight per piece (including packing): 18.75 g
• Weight per piece (excluding packing): 16.575 g
• Country of origin: PL

Technical specifications

• Family / model: PRC 20
• Designation: PRC 20/3-C1-FT25-MC2,5 SET50 (device connector front mounting)
• Positions: 3 (2+PE)
• Connection method: Crimp connection
• Conductor cross-section: 0.5 mm² – 2.5 mm²
• Rated voltage: up to 600 V AC / DC (standards and specifics as above)
• Rated current: 20 A
• Dimensions (W×H×L): 34 mm × 38.4 mm × 52 mm
• Degree of protection: IP66 / IP68 (2 m / 2 h) / IP69
• Materials: Housing PPE; Contact carrier PPE; Cable gland PC; Contact CuZn (Pb < 0.1)
• Packing unit / MOQ: 50 pc
• GTIN / EAN: 4063151866129
