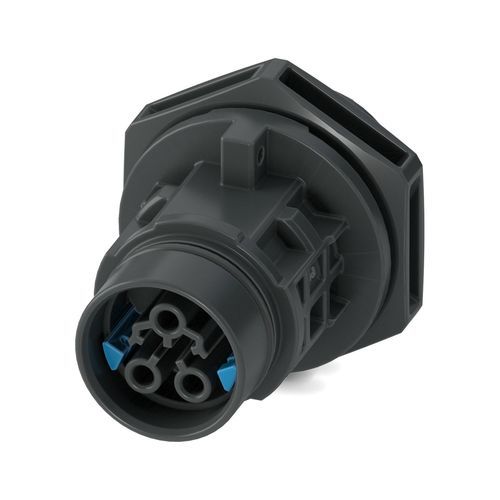

Electrical power supply connector PRC 20/3-C1-FT25-FC2,5 SET50

mains power supplywire-to-wireround

Short description
Device connector front mounting, Range of articles: PRC 20, color: black, number of positions: 3, min. conductor cross-section: 0.5 mm², max. conductor cross-section: 2.5 mm², rated voltage: 400 V, rated current: 20 A, Connection method: Crimp connection, Setting option for release: 1. with a tool or 2. by hand

Order information / Notes
Setting option for release: 1. with a tool or 2. by hand
Note on application: For assembly notes, please refer to the packing slip

Product properties
Product type: Panel feed-through
Product family: PRC 20
Number of positions: 3
Connection profile: 2+PE
Coding: 3-C1
Insulation characteristics: Protection class II

Dimensions
Dimensional drawing available (see product drawings)
Width: 34 mm
Height: 38.4 mm
Length: 52 mm

Electrical properties
Rated voltage: 400 V (III/2.00) in accordance with IEC 61984
400 V AC (III/2.00) in accordance with IEC 61535
600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237
500 V DC (III/2.00) in accordance with IEC 61535
Rated current: 20 A (With 2.5 mm² conductor cross-section in accordance with IEC 61535)

Material specifications
Color (Housing): black (RAL 9005)
Material Housing: PPE
Material Contact carrier: PPE
Material Cable gland: PC
Material Contact: CuZn (Contact material, Pb < 0.1)

Cable/line
Single wire, cross section: 0.5 mm² – 2.5 mm²

Environmental and real-life conditions
Degree of protection: IP66
IP68 (2 m / 2 h)
IP69

Commercial data
Item number: 1468374
Packing unit: 50 pc
Minimum order quantity: 50 pc
Product key: ABLHAC
GTIN: 4063151863562
Weight per piece (including packing): 17.48 g
Weight per piece (excluding packing): 15.147 g
Country of origin: PL

technical characteristics / specifications

• Product family: PRC 20
• Model / designation: PRC 20/3-C1-FT25-FC2,5 SET50
• Number of positions: 3
• Connection profile: 2+PE
• Coding: 3-C1
• Rated voltage: up to 600 V AC/DC (see standards), typical rating 400 V
• Rated current: 20 A (with 2.5 mm²)
• Conductor cross-section: 0.5 mm² – 2.5 mm²
• Connection method: Crimp connection
• Housing material: PPE, color black (RAL 9005)
• Contact material: CuZn (Pb < 0.1)
• Protection class: II
• Degree of protection: IP66 / IP68 (2 m / 2 h) / IP69
• Dimensions (W×H×L): 34 mm × 38.4 mm × 52 mm
• Packing unit / minimum order: 50 pieces
• GTIN (EAN): 4063151863562
