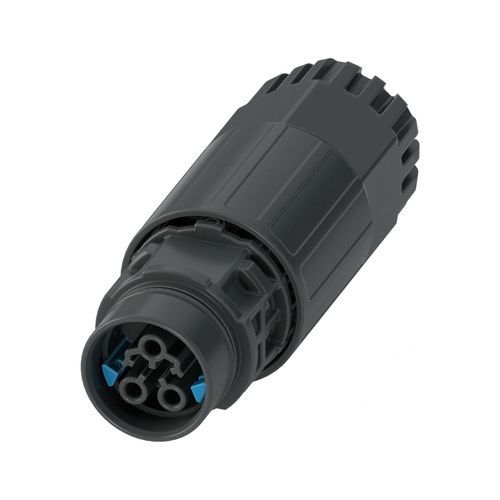

Electrical power supply connector PRC 20/3-C1-FC-FC2,5 SET50

wire-to-wirecircularcrimp

Product overview
Coupler connector for installation applications. Product family: PRC 20. Color: black (RAL 9005). Number of positions: 3 (2+PE). Wire cross-section range: 0.5–2.5 mm². Rated voltage: 400 V AC (IEC); alternative ratings: 600 V AC/DC (UL), 500 V DC (IEC). Rated current: 20 A. Connection method: crimp connection. Release setting options: 1. with a tool or 2. by hand.

Technical data (high level)

• Product type: Installation connector
• Product family: PRC 20
• Number of positions: 3
• Connection profile: 2+PE
• Coding: 3-C1
• Protection class: II

Electrical properties
Rated voltage: 400 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915; 600 V AC/DC (III/2.00) in accordance with UL 2238 / UL 2237; 500 V DC (III/2.00) in accordance with IEC 61535. Rated current: 20 A (with 2.5 mm² conductor cross-section in accordance with IEC 61535).

Dimensions
Width: 28.5 mm
Height: 28.5 mm
Length: 80.4 mm

Material specifications
Color (housing): black (RAL 9005)
Material seal (cable seal): EPDM
Material housing: PPE
Material contact carrier: PPE
Material cable gland: PC
Material contact: CuZn (Contact material, Pb < 0.1)

Cable / line
Single wire, cross section: 0.5–2.5 mm². Suitable AWG: 20–14 (per UL listings).

Commercial data

• Item number: 1468419
• Packing unit: 50 pc
• Minimum order quantity: 50 pc
• Product key: ABLHBB
• GTIN / EAN: 4063151865474
• Weight per piece (including packing): 30.901 g
• Weight per piece (excluding packing): 30.901 g
• Country of origin: PL

Approvals (extract)
VDE approval (ID: 334664-TL3-1) - Nominal voltage U_N: 500 V; Nominal current I_N: 20 A; cross section: 0.5–2.5 mm².
UL Listed (ID: E221474-20240312) - Nominal voltage: 600 V; Nominal current: 20 A; AWG: 20–14.
cUL Listed (ID: E221474-20240312) - Nominal voltage: 600 V; Nominal current: 20 A; AWG: 20–14.

Order information / Notes
Release setting options: 1. with a tool or 2. by hand. For assembly and installation instructions, refer to the packing slip and product downloads.

Downloads (available on product page)
Product documents and drawings (approvals, declarations, 3D models, technical drawings, tender texts, packing slip) are available in the product downloads section.

Advantages / additional product information

• Compact design enabling up to 20 A current transmission in a reduced footprint
• Duo-Unlock locking technology for flexible installation and maintenance
• High protection ratings and good impact resistance for demanding environments
• Simple handling via crimp termination and proven connection technologies
• Quick, error‑reduced commissioning through mechanical coding and color marking

Technical specifications

• Product family / series: PRC 20
• Designation: PRC 20/3-C1-FC-FC2,5 SET50
• Product type: Installation connector
• Number of positions: 3
• Connection profile: 2+PE
• Coding: 3-C1
• Connection method: Crimp connection
• Release setting for unlocking: tool or by hand
• Rated voltage (IEC): 400 V AC; (UL) 600 V AC/DC; (IEC DC) 500 V DC
• Rated current: 20 A (with 2.5 mm² conductor cross-section)
• Wire cross-section: 0.5–2.5 mm²
• Dimensions (W x H x L): 28.5 mm x 28.5 mm x 80.4 mm
• Housing color: black (RAL 9005)
• Housing material: PPE; Contact material: CuZn (Pb < 0.1)
• Packing unit / MOQ: 50 pc
• Item number: 1468419; GTIN/EAN: 4063151865474; Product key: ABLHBB
• Country of origin: PL; Weight per piece: 30.901 g
