Electrical power supply connector PRC 20/5-C1-FT25-FC2,5 SET50

roundcrimpAC

Short description

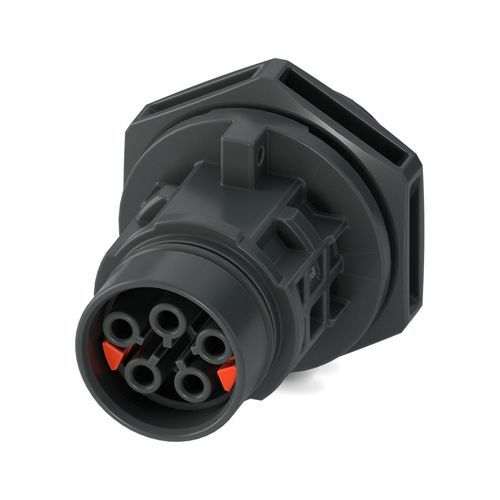

Device connector for front mounting. Product range: PRC 20. Color: black. Number of positions: 5. Min. conductor cross-section: 0.5 mm², max. conductor cross-section: 2.5 mm². Rated voltage: 400 V AC. Rated current: 20 A. Connection method: Crimp connection. Setting option for release: 1. with a tool or 2. by hand.

Product properties

• Product type: Panel feed-through
• Product family: PRC 20
• Number of positions: 5
• Connection profile: 4+PE
• Coding: 5-C1
• Protection class: II

Dimensions
Dimensional drawing available.

Table (dimensional data):
Width: 34 mm
Height: 38.4 mm
Length: 52 mm

Electrical properties

• Rated voltage: 400 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915
• Also: 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237
• 500 V DC (III/2.00) in accordance with IEC 61535
• Rated current: 20 A (with 2.5 mm² conductor cross-section in accordance with IEC 61984)

Material and color

• Housing color: black (RAL 9005)

Cable / line

• Single wire cross section: 0.5 mm² to 2.5 mm²

Commercial information

• Item number: 1468393
• Packing unit: 50 pc
• Minimum order quantity: 50 pc
• Product key: ABLHAC
• GTIN / EAN: 4063151865467
• Weight per piece (including packing): 17.64 g
• Weight per piece (excluding packing): 15.267 g
• Country of origin: PL

Mandatory accessories / compatible products
This product requires additional products for operation (mandatory accessories). Examples of compatible / mandatory accessories: PRC 20 SEAL (various sizes / sets) and PRC 20 crimp contacts (e.g. PRC 20-CCF 0,5-2,5).

Approvals

• VDE approval ID: 334664-TL3-1 (specification: nominal voltage 500 V, nominal current 20 A, conductor cross section 0.5 - 2.5 mm²)
• UL Listed (Approval ID: E221474-20240312) (specification: nominal voltage 600 V, nominal current 20 A, AWG 20 - 14)
• cUL Listed (Approval ID: E221474-20240312) (specification similar to UL listing)

Downloads & CAD
Various downloadable documents are available for this product including simplified 3D models (.stp), product family drawings and technical drawings, declarations of conformity and package slips. Example available files: pxc_1468393_01_00_PRC-20-5-C1-FT25-FC2-5_3D.stp, pxc_1468393_02_00_PRC-20-5-C1-FT25-FC2-5-SET50_3D.stp, product family drawings and multiple PDF declarations and certificates.

Notes
Setting option for release: 1. with a tool or 2. by hand. For assembly notes, refer to the packing slip.

Technical specifications

• Series / family: PRC 20
• Designation: Device connector front mounting
• Positions: 5
• Connection method: Crimp connection
• Conductor cross-section: 0.5 - 2.5 mm²
• Rated voltage: 400 V AC (IEC); 600 V AC/DC (UL)
• Rated current: 20 A (with 2.5 mm²)
• Connection profile: 4+PE
• Coding: 5-C1
• Protection class: II
• Housing color: Black (RAL 9005)
• Packing unit / MOQ: 50 pc
• GTIN / EAN: 4063151865467
• Item number: 1468393
