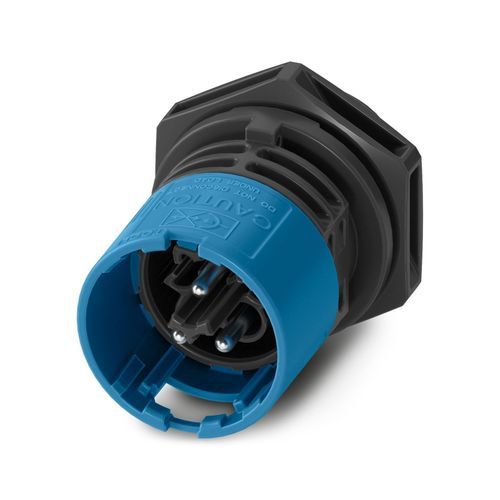

Electrical power supply connector PRC 20/3-C1-FT25-MC2,5 SET50

mains power supplycircularcrimp

Short description
Panel feed-through for front mounting, product family PRC 20, color: black, positions: 3, conductor cross-section: 0.5–2.5 mm², rated voltage: up to 400 V (IEC), rated current: 20 A, connection: crimp connection, release setting: 1. with a tool or 2. by hand

Key features

• Compact front-facing panel feed-through with current carrying capacity up to 20 A
• Duo-Unlock mechanism for flexible release during installation and maintenance
• High ingress protection and impact resistance for use in demanding ambient conditions
• Reliable crimp connection technology for straightforward wiring
• Mechanical and color coding for fast, error-free commissioning

Order information / Notes
Setting option for release: 1. with a tool or 2. by hand
For assembly instructions, see the packing slip

Product properties

• Product type: Panel feed-through, front mounting
• Product family: PRC 20
• Number of positions: 3
• Connection profile: 2+PE
• Coding: 3-C1
• Protection class / Insulation: II

Dimensions
Dimensional drawing: see dimensional drawing image

• Width: 34 mm
• Height: 38.4 mm
• Length: 52 mm

Electrical properties

• Rated voltage: 400 V (III/2.00) according to IEC 61984; 400 V AC (III/2.00) according to IEC 61535; 600 V AC/DC (III/2.00) according to UL 2238 / UL 2237; 500 V DC (III/2.00) according to IEC 61535
• Rated current: 20 A (with 2.5 mm² conductor cross-section according to IEC 61535)

Material specifications

• Housing color: black (RAL 9005)
• Housing material: PPE
• Contact carrier material: PPE
• Cable gland material: PC
• Contact material: CuZn (Pb < 0.1)

Cable / line
Single wire, cross section: 0.5–2.5 mm²

Environmental and real-life conditions
Ingress protection: IP66; IP68 (2 m / 2 h); IP69

Commercial data

• Item number: 1468373
• Packing unit: 50 pc
• Minimum order quantity: 50 pc
• Product key: ABLHAC
• GTIN (EAN): 4063151866129
• Weight per piece (excl. packing): 16.575 g
• Weight per piece (incl. packing): 18.75 g
• Country of origin: PL

Mandatory accessories

• PRC 20-CCM 0,5-2,5 - Crimp contact (product reference: 1468462)

Technical specifications

• Series: PRC 20
• Type: Panel feed-through, front mounting
• Number of positions: 3
• Coding: 3-C1
• Connection method: Crimp connection
• Conductor cross section range: 0.5 mm² to 2.5 mm²
• Rated voltage: up to 400 V (IEC), up to 600 V AC/DC (UL)
• Rated current: 20 A (with 2.5 mm²)
• Protection class / Insulation: II
• Housing color/material: black (RAL 9005), PPE
• Contact material: CuZn (Pb < 0.1)
• Ingress protection: IP66 / IP68 (2 m / 2 h) / IP69
• Dimensions (W×H×L): 34 mm × 38.4 mm × 52 mm
• Packing unit / MOQ: 50 pc
