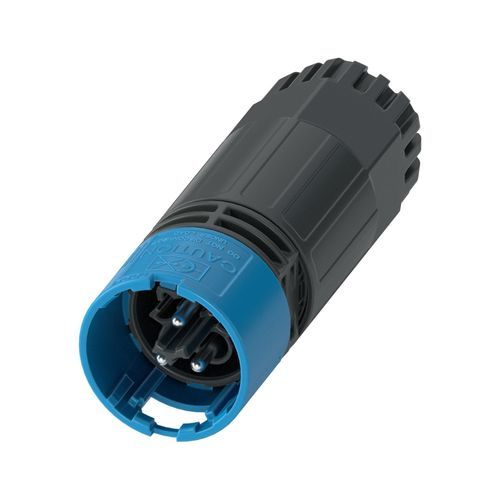

Electrical power supply connector PRC 20/3-C1-FC-MC2,5 SET50

wire-to-wirecircularcrimp

Product description
Connector, product range: PRC 20, color: black (RAL 9005), number of positions: 3, connection profile: 2+PE, conductor cross-section: 0.5 mm² – 2.5 mm², rated voltage: up to 400 V (standard-dependent), rated current: 20 A, connection method: crimp connection. Release setting: 1. with a tool or 2. by hand.

Order information / Notes
Release setting: with a tool or by hand. For assembly instructions, refer to the packing slip.

Product properties
Product type: Installation connector
Product family: PRC 20
Number of positions: 3
Connection profile: 2+PE
Coding: 3-C1
Protection class: II

Electrical properties
Rated voltage: 400 V (III/2.00) in accordance with IEC 61984; 400 V AC (III/2.00) in accordance with IEC 61535; 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237; 500 V DC (III/2.00) in accordance with IEC 61535
Rated current: 20 A (with 2.5 mm² conductor cross-section in accordance with IEC 61535)

Dimensions
Width: 28.5 mm
Height: 28.5 mm
Length: 80.4 mm

Material specifications
Color (Housing): black (RAL 9005)
Seal material: EPDM (cable seal)
Housing material: PPE
Contact carrier material: PPE
Cable gland material: PC
Contact material: CuZn (Pb < 0.1)

Cable / line
Single wire, cross section: 0.5 mm² – 2.5 mm²

Environmental and real-life conditions
Degree of protection: IP66
IP68 (2 m / 2 h)
IP69

Commercial data
Item number: 1468417
Packing unit: 50 pc
Minimum order quantity: 50 pc
Product key: ABLHBB
GTIN: 4063151866426
Weight per piece (including packing): 32.456 g
Weight per piece (excluding packing): 32.249 g
Country of origin: PL

Product advantages / Notes

• More front-panel space through current transmission up to 20 A in a compact footprint.
• Duo-Unlock technology for greater flexibility during installation and maintenance.
• Reliable operation under extreme ambient conditions with high protection ratings and good impact resistance.
• Simple handling using proven crimp connection technology.
• Mechanical and color coding for fast, error-free commissioning.

Technical specifications

• Series: PRC 20
• Model / designation: PRC 20/3-C1-FC-MC2,5 SET50
• Type: Installation connector
• Number of positions: 3
• Connection profile: 2+PE
• Color: black (RAL 9005)
• Conductor cross-section: 0.5 mm² – 2.5 mm²
• Rated voltage: up to 600 V AC/DC (various standards as specified)
• Rated current: 20 A (with 2.5 mm² conductor)
• Connection method: Crimp connection
• Dimensions (W×H×L): 28.5 mm × 28.5 mm × 80.4 mm
• Degree of protection: IP66 / IP68 (2 m / 2 h) / IP69
• Materials: Housing/Contact carrier PPE, Cable gland PC, Seal EPDM, Contact CuZn (Pb < 0.1)
• Packing unit: 50 pcs (minimum order quantity: 50)
• GTIN / EAN: 4063151866426
• Manufacturer item number: 1468417
