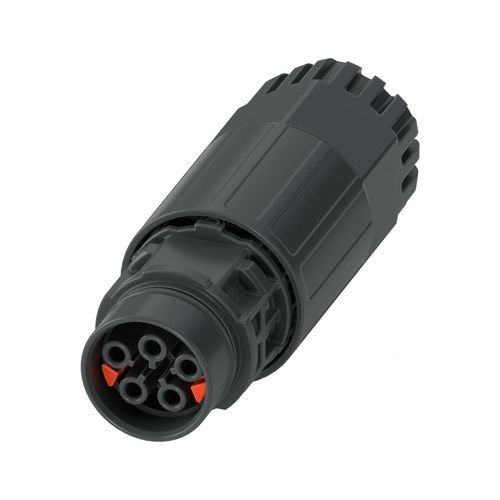

Electrical power supply connector PRC 20/5-C1-FC-FC2,5 SET50

mains power supplywire-to-wireround

Product description
Coupler connector, Range of articles: PRC 20, color: black, number of positions: 5, rated voltage: 400 V AC, rated current: 20 A, Connection method: Crimp connection, Setting option for release: 1. with a tool or 2. by hand

Technical data — Notes
Order information: Setting option for release: 1. with a tool or 2. by hand
Note on application: For assembly notes, please refer to the packing slip

Product properties
Product type: Installation connector
Product family: PRC 20
Number of positions: 5
Connection profile: 4+PE
Coding: 5-C1
Insulation characteristics: Protection class: II

Electrical properties
Rated voltage: 400 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915
600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237
500 V DC (III/2.00) in accordance with IEC 61535
Rated current: 20 A (With 2.5 mm² conductor cross-section in accordance with IEC 61984)

Dimensions
Width: 28.5 mm
Height: 28.5 mm
Length: 80.4 mm

Material specifications
Color (Housing): black (RAL 9005)
Material Seal: EPDM (Cable seal)
Material Housing: PPE
Material Contact carrier: PPE
Material Cable gland: PC
Material Contact: CuZn (Contact material, Pb < 0.1)

Commercial data
Item number: 1468453
Packing unit: 50 pc
Minimum order quantity: 50 pc
Product key: ABLHBB
GTIN: 4063151866334
Weight per piece (including packing): 31.6 g
Weight per piece (excluding packing): 31.021 g
Country of origin: PL

Downloads & Approvals (summary)
Various certificates, declarations of conformity and approval documents are available for this item (e.g. VDE approval, UL listings, declarations of conformity). CAD / simplified 3D models and product family drawings are provided.

Features / technical specifications

• Product type: Installation connector
• Product family / Series: PRC 20
• Model / Coding: 5-C1
• Number of positions: 5
• Connection profile: 4+PE
• Rated voltage: 400 V AC; 600 V AC/DC (UL); 500 V DC (IEC)
• Rated current: 20 A (with 2.5 mm² conductor)
• Connection method: Crimp connection
• Setting option for release: with a tool or by hand
• Protection class: II
• Width × Height × Length: 28.5 mm × 28.5 mm × 80.4 mm
• Housing color: black (RAL 9005)
• Material — Housing / Contact carrier: PPE
• Material — Seal: EPDM
• Material — Cable gland: PC
• Material — Contact: CuZn (Pb < 0.1)
• Packing unit / Minimum order quantity: 50 pc
• GTIN (EAN): 4063151866334
• Gross weight per piece: 31.6 g; Net weight per piece: 31.021 g
• Country of origin: PL
