Electrical power supply connector PRC 20/5-C1-FC-MC2,5 SET50

mains power supplywire-to-wirecircular

Short description

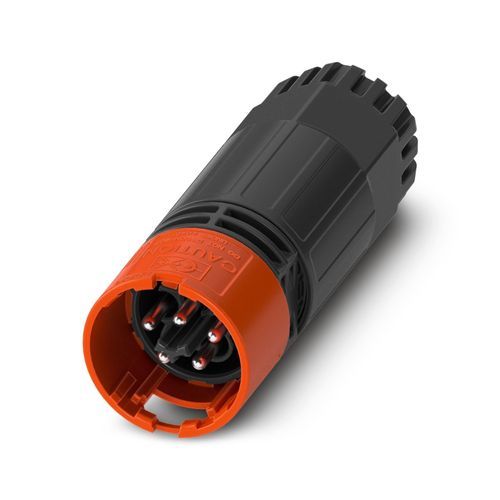

Installation connector PRC 20/5-C1-FC-MC2,5 SET50, 5 positions (4+PE), crimp connection, rated current 20 A, housing black (RAL 9005), locking red (RAL 3001).

Order information / Notes
Setting option for release: with a tool or by hand. For assembly and installation notes, refer to the packing slip and product documentation.

Product properties

• Product type: Installation connector
• Product family: PRC 20
• Number of positions: 5 (4+PE)
• Coding: 5-C1
• Protection class: II

Electrical properties

• Rated voltage: 400 V AC (III/2.00) according to IEC 61535/2 PfG 1915; up to 600 V AC/DC (according to UL 2238 / UL 2237); 500 V DC (IEC 61535)
• Rated current: 20 A (with 2.5 mm² conductor cross-section according to IEC 61984)
• Connection method: Crimp connection

Dimensions

• Width: 28.5 mm
• Height: 28.5 mm
• Length: 80.4 mm

Material specifications

• Housing material: PPE, color black (RAL 9005)
• Locking mechanism: red (RAL 3001)
• Seal (cable seal): EPDM
• Cable gland: PC
• Contact material: CuZn (Pb < 0.1)

Commercial data

• Item number: 1468451
• Packing unit / Minimum order quantity: 50 pc
• Product key: ABLHBB
• GTIN: 4063151866716
• Weight per piece (incl. packaging): 32.479 g
• Country of origin: PL

Approvals (summary)

• VDE: ID 334664-TL3-1 — 500 V / 20 A (cross section 0.5 - 2.5 mm²)
• UL Listed: ID E221474-20240312 — 600 V / 20 A (AWG 20 - 14)
• cUL Listed: ID E221474-20240312 — 600 V / 20 A

Mandatory accessories (examples)

• Insert seals: PRC 20 SEAL 10-14 SET 25; PRC 20 SEAL 8-10 SET 25; PRC 20 SEAL 6-8 SET 25
• Crimp contact: PRC 20-CCM 0,5-2,5

Technical specifications

• Series: PRC 20
• Designation: PRC 20/5-C1-FC-MC2,5 SET50
• Function: Installation connector
• Number of positions: 5 (4+PE)
• Rated voltage: up to 600 V AC/DC (depending on approval/standard)
• Rated current: 20 A (with 2.5 mm² conductor)
• Connection method: Crimp connection
• Materials: Housing PPE; Contacts CuZn (Pb < 0.1); Cable gland PC; Seal EPDM
• Dimensions (W×H×L): 28.5 mm × 28.5 mm × 80.4 mm
• Packing unit / MOQ: 50 pc
• GTIN/EAN: 4063151866716
