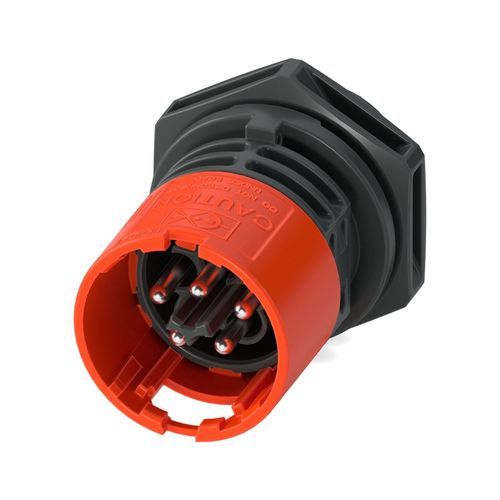

Electrical power supply connector PRC 20/5-C1-FT25-MC2,5 SET50

mains power supplycylindricalcrimp

Short description
Panel feed-through for front mounting. Product family: PRC 20. Housing color: black. Number of positions: 5. Conductor cross-section: 0.5 mm² – 2.5 mm². Rated voltage (typ.): 400 V AC. Rated current: 20 A. Connection method: Crimp connection. Release setting: 1. with a tool or 2. by hand.

Technical data (tables and items)
Order information: Release setting option selectable: 1. with a tool or 2. by hand. For detailed assembly and torque data, refer to packing slip and product drawings.

Product properties
Product type: Panel feed-through
Product family: PRC 20
Number of positions: 5
Connection profile: 4+PE
Coding: 5-C1
Insulation characteristics: Protection class II

Dimensions
Dimensional drawing: see product drawings
Width: 34 mm
Height: 38.4 mm
Length: 52 mm

Electrical properties
Rated voltage: 400 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915; 600 V AC/DC (III/2.00) per UL 2238 / UL 2237; 500 V DC (III/2.00) per IEC 61535
Rated current: 20 A (with 2.5 mm² conductor cross-section in accordance with IEC 61984)

Material specifications
Housing color: black (RAL 9005)

Cable / line
Single wire, conductor cross-section: 0.5 mm² – 2.5 mm²

Commercial data
Article number: 1468392
Packing unit: 50 pc
Minimum order quantity: 50 pc
Product key: ABLHAC
GTIN (EAN): 4063151865450
Weight per piece (incl. packing): 18.69 g
Weight per piece (excl. packing): 16.805 g
Country of origin: PL

Mandatory accessories

• PRC 20-CCM 0,5-2,5 - Crimp contact (example crimp contact)
• CRIMPFOX-TC MP-6 - Crimping pliers with digital display (example crimping tool)

Approvals (summary)
Item is listed with various international approvals (e.g., VDE, UL Listed / cUL). Refer to approval tables for nominal voltages and currents per approval.

Technical characteristics / specifications

• Series: PRC 20
• Model coding: 5-C1
• Positions: 5
• Connection: Crimp connection (screw connection variants available in family)
• Conductor cross-section: 0.5 mm² to 2.5 mm²
• Rated current: 20 A (with 2.5 mm²)
• Rated voltage: up to 600 V AC/DC depending on approval (typical 400 V AC)
• Dimensions (W×H×L): 34 mm × 38.4 mm × 52 mm
• Housing color: black (RAL 9005)
• Packing / minimum order: 50 pieces
• GTIN/EAN: 4063151865450
