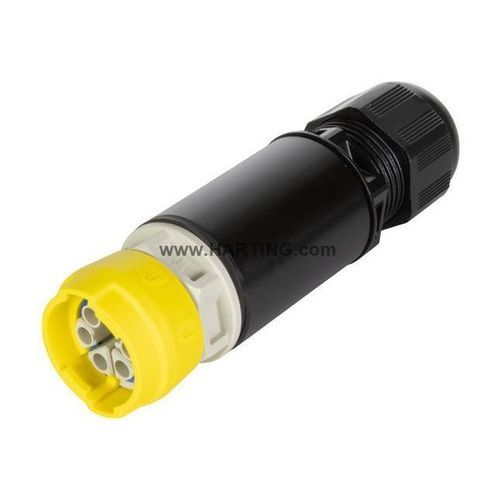

Combined connector S15_PFT_STR-FM_AC_M_CRT_w/o-contacts

wire-to-wirecircularcrimp

Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Cable connector
Article No.: 97 00 000 1412

Key features

• Cable connector, female
• Crimp termination
• Polyamide (PA) insert, grey
• Black hood/housing
• 6 contacts (3 signal, 2 power, 1 PE)
• Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
• Clamping range: 6 ... 13 mm
• Degree of protection: IP65 / IP67
• Toggle locking

Contacts & contact layout
Number of contacts: 6
Number of signal contacts: 3
Number of power contacts: 2
Number of protective earth contacts: 1 (PE contact)
Locking type: Toggle locking

Technical data
Conductor cross-section (mm²): 0.14 ... 2.5 mm²
Conductor cross-section (AWG): AWG 26 ... AWG 14
Rated current (signal): 4 A
Rated voltage (signal): 48 V AC/DC
Rated impulse voltage (signal): 1.5 kV
Pollution degree (signal): 3
Rated current (power): 20 A
Rated voltage (power): 48 V AC
Rated impulse voltage (power): 0.8 kV
Pollution degree (power): 3
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection (IEC 60529): IP65 / IP67
Clamping range: 6 ... 13 mm
Isolation group: I (CTI ≥ 600)

Materials & Compliance
Insert material: Polyamide (PA)
Insert colour: Grey
Hood / housing colour: Black
Flammability (UL 94): HB
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII / XIV / SVHC: Not contained
California Proposition 65: Not contained

Specifications / approvals
IEC 61076-2-116
IEC 60228
IEC 61984

Commercial data
Packaging size: 1
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440115 Circular connector (set)

Technical specifications

• Category: Connectors
• Series: Circular connectors Size 15
• Element: Cable connector, female
• Termination method: Crimp termination
• Shielding: Unshielded
• Contacts total: 6 (3 signal, 2 power, 1x PE)
• Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
• Rated current (signal): 4 A; (power): 20 A
• Rated voltage (signal): 48 V AC/DC; (power): 48 V AC
• Rated impulse voltages: signal 1.5 kV; power 0.8 kV
• Pollution degree: 3
• Degree of protection: IP65 / IP67
• Clamping range: 6 ... 13 mm
• Limiting temperature: -30 ... +90 °C
• Mating cycles: ≥ 100
• Insert material/colour: Polyamide (PA), grey; hood/housing black
• Flammability UL94: HB
• Standards: IEC 61076-2-116, IEC 60228, IEC 61984
• Packaging size: 1
• Country of origin: Romania
