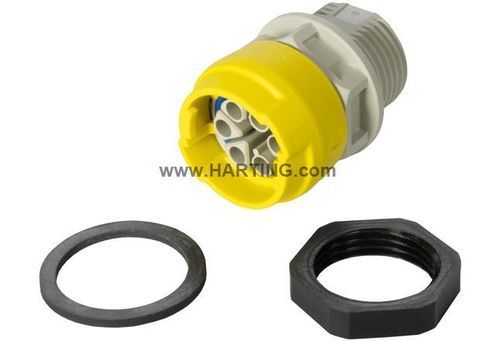

Electric connector housing S15_PFT_STR-FM_DC_F_CRT_w/o-contacts

panel mountIP65IP67

Product type
Panel feed-through connector for front mounting

Identification
Category: Connectors
Series: Circular connectors size 15
Element: Panel feed-through
Specification: Front mounting

Version
Gender: Female
Shielding: Unshielded
Number of contacts: 5 (3 signal / 2 power)
PE contact: Yes
Locking type: Toggle locking
Details: Crimp contacts to be ordered separately.
Pack contents: Includes lock nut

Material properties
Insert material: Polyamide (PA)
Hood/housing material: Polyamide (PA)
Material flammability class (UL 94): V-0

Specifications and approvals
IEC 61076-2-116
IEC 61984

Commercial data
Packaging size: 25
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 Sensor-actuator connector chassis (sensor/actuator technology)
UNSPSC 24.0: 39121413

Notes
Image for illustration purposes only. Refer to the product description.

Technical specifications

• Conductor cross-section (mm²): 0.14 ... 2.5 mm²
• Conductor cross-section (AWG): AWG 26 ... AWG 14
• Pollution degree: 3
• Rated current (signal): 4 A
• Rated voltage (signal): 48 V AC/DC
• Rated impulse voltage (signal): 0.8 kV
• Pollution degree (signal): 3
• Rated current (power): 20 A
• Rated voltage (power): 48 V AC/DC
• Rated voltage conductor-conductor (power): 48 V
• Rated impulse voltage (power): 0.8 kV
• Pollution degree (power): 3
• Tightening torque (lock nut): 2 Nm
• Operating temperature range: -30 ... +90 °C
• Mating cycles: ≥ 100
• Degree of protection (IEC 60529): IP65 / IP67
• Isolation group: I (CTI ≥ 600)
• Panel thickness: 1 ... 10 mm
