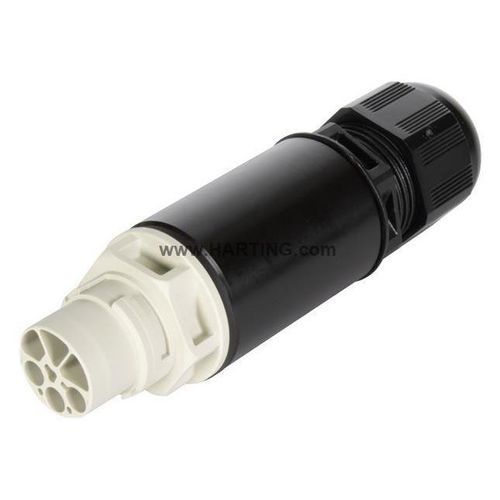

Electric connector housing S15_CC_STR_DC_CRT_M_6P_6-13

IP67IP65waterproof

Overview

• Cable connector, Size 15
• Male version with crimp termination
• Contacts: 6 (3 signal contacts, 2 power contacts, 1 PE contact)
• Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
• Toggle locking
• Degree of protection: IP65 / IP67
• Clamping range: 6 ... 13 mm
• Housing/insert materials: Polyamide (PA)

Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Cable connector
Article No.: 97 00 000 1410

Version
Termination method: Crimp termination
Gender: Male
Shielding: Unshielded
Number of contacts: 6
Number of signal contacts: 3
Number of power contacts: 2
Number of special contacts: 1x PE contact
Specification of special contacts: PE contact
Locking type: Toggle locking

Technical characteristics
Conductor cross-section (mm²): 0.14 ... 2.5 mm²
Conductor cross-section (AWG): AWG 26 ... AWG 14
Pollution degree: 3
Rated current (signal): 4 A
Rated voltage (signal): 48 V AC/DC
Rated impulse voltage (signal): 1.5 kV
Pollution degree (signal): 3
Rated current (power): 20 A
Rated voltage (power): 48 V AC
Rated impulse voltage (power): 0.8 kV
Pollution degree (power): 3
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection (IEC 60529): IP65 / IP67
Clamping range: 6 ... 13 mm
Isolation group: I (600 ≤ CTI)

Material properties
Material (insert): Polyamide (PA)
Colour (insert): Grey
Colour (hood/housing): Black
Material flammability class (UL 94): HB
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH ANNEX XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Not contained

Specifications and approvals
IEC 61076-2-116
IEC 60228
IEC 61984

Commercial data
Packaging size: 1
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440115 Circular connector (set)

Features / technical specifications

• Product type: Cable connector
• Gender: Male
• Termination: Crimp termination
• Contacts total: 6 (3 signal / 2 power / 1 PE)
• Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
• Rated currents: signal 4 A, power 20 A
• Rated voltages: signal 48 V AC/DC, power 48 V AC
• Degree of protection: IP65 / IP67
• Clamping range: 6 ... 13 mm
• Material: Polyamide (PA); insert grey, housing black
• Temperature range: -30 ... +90 °C
• Mating cycles: ≥ 100
