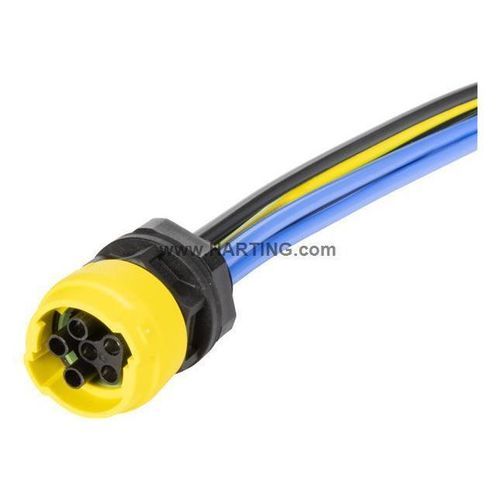

Panel mount connector housing S15_PFT_STR-FM_AC_F_6P

IP67IP65plastic

Product details
Identification:
Category: Connectors
Series: Circular connectors Size 15
Element: Panel feed through
Specification: With conductors; for front mounting

Version
Gender: Female
Shielding: Unshielded
Number of contacts: 5
Number of signal contacts: 2
Number of power contacts: 3
PE contact: Yes
Locking type: Toggle locking
Pack contents: incl. lock nut

Technical characteristics
Conductor cross-section (mm²): 2.5 mm²
Conductor cross-section (AWG): AWG 14
Pollution degree: 3
Rated current (signal): 10 A
Rated voltage (signal): 63 V AC/DC
Rated impulse voltage (signal): 1.5 kV
Pollution degree (signal): 3
Rated current (power): 16 A
Rated voltage conductor-earth (Power): 450 V AC / 600 V DC
Rated voltage conductor-conductor (Power): 630 V AC/DC
Rated impulse voltage (power): 6 kV
Pollution degree (power): 3
Tightening torque: 2 Nm (Lock nut)
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection acc. to IEC 60529: IP65 / IP67
Isolation group: I (600 ≤ CTI)
Thickness of the panel: 1 ... 10 mm
Conductor length: 25 cm

Material properties
Material (insert): Polyamide (PA)
Colour (insert): Black
Material (contacts): Copper alloy
Surface (contacts): Silver plated
Material (hood/housing): Polyamide (PA)
Material flammability class acc. to UL 94: V-0
RoHS: compliant with exemption (6(c): Copper alloy containing up to 4 % lead by weight)
REACH Annex XVII substances: Not contained
REACH ANNEX XIV substances: Not contained
REACH SVHC substances: Yes (Lead listed)
ECHA SCIP number: 0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances: Yes (Lead)

Specifications and approvals
Standards / approvals: IEC 61076-2-116; IEC 60228; IEC 61984; VDE 0482-332-1-2; IEC 60332-1-2 Flame retardancy; UL 2556 Sec. 9.4 (VW-1); UL 2556 Sec. 9.3 (FT1)

Commercial data
Packaging size: 1
Net weight: 60.4 g
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0: 39121413

Technical features / specifications

• Model series: S15_PFT (Size 15 panel feed through)
• Number of contacts: 5 (3 power + 2 signal) with PE contact
• Conductor cross-section: 2.5 mm² (AWG 14)
• Rated currents: Power 16 A; Signal 10 A
• Rated voltages: Power up to 630 V AC/DC conductor-conductor; conductor-earth 450 V AC / 600 V DC; Signal 63 V AC/DC
• Rated impulse voltages: Signal 1.5 kV; Power 6 kV
• Degree of protection: IP65 / IP67
• Temperature range: -30 °C to +90 °C
• Tightening torque (lock nut): 2 Nm
• Mating cycles: ≥ 100
• Housing/insert material: Polyamide (PA); Contacts: Copper alloy, silver plated
• Pack contents: including lock nut
• Conductor length: 25 cm (with conductors, for front mounting)
