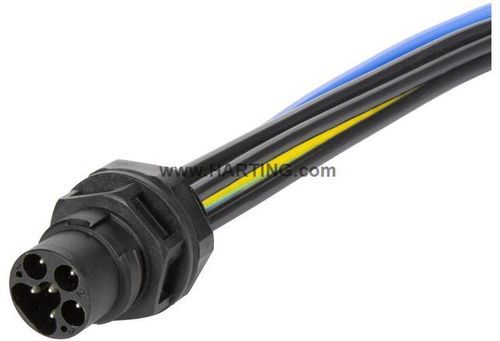

Electric connector housing S15_PFT_STR-FM_AC_M_6P

panel mountIP65IP67

Product overview

• Article No.: 21 15 510 0025
• Product type: Panel feed-through for front mounting with conductors
• Conductor length: 25 cm (0.25 m)
• Contacts: 5 (2 signal, 3 power) including PE contact

Identification
Category: Connectors
Series: S15 circular connectors (Size 15)
Element: Panel feed-through
Specification: With conductors; front mounting

Version
Gender: Male
Shielding: Unshielded
Number of contacts: 5 (2 signal, 3 power)
PE contact: Yes
Locking type: Toggle locking
Panel thickness: 1 ... 10 mm (housing wall thickness max. 5 mm with lock nut; >5 mm only with earthed metal or plastic housing)
Pack contents: Includes lock nut

Technical characteristics
Conductor cross-section: 2.5 mm² (AWG 14)
Rated current (signal): 10 A
Rated voltage (signal): 63 V AC/DC
Rated impulse voltage (signal): 1.5 kV
Rated current (power): 16 A
Rated voltage conductor-earth (power): 450 V AC / 600 V DC
Rated voltage conductor-conductor (power): 630 V AC/DC
Rated impulse voltage (power): 6 kV
Tightening torque (lock nut): 2 Nm
Temperature range: -30 … +90 °C
Mating cycles: ≥ 100
Degree of protection (IEC 60529): IP65 / IP67
Isolation group: I (CTI ≥ 600)

Material properties
Insert material: Polyamide (PA), insert colour: Black
Contact material: Copper alloy, contacts silver plated
Hood/housing material: Polyamide (PA)
Flammability (UL 94): V-0
RoHS: compliant with exemption (6(c): Copper alloy with up to 4% lead by weight)
REACH SVHC: Contains lead (see material notes)
ECHA SCIP: 0d7d3693-d625-47ab-934a-d241bf72c86e
California Prop 65: Contains lead

Specifications and approvals
IEC 61076-2-116
IEC 60228
IEC 61984
VDE 0482-332-1-2
IEC 60332-1-2 (flame retardancy)
UL 2556 Sec. 9.4 (VW-1); UL 2556 Sec. 9.3 (FT1)

Commercial data
Packaging size: 1
Net weight: 59.1 g
Country of origin: Romania
Customs tariff (EU): 85366990
eCl@ss: 27440103 (sensor-actuator connector chassis)
UNSPSC: 39121413

Technical features

• Panel feed-through S15 series with pre-attached conductors for front mounting
• Article number: 21 15 510 0025
• Conductor cross-section: 2.5 mm² (AWG 14); conductor length: 25 cm
• Contacts: Copper alloy, silver plated; 5 contacts (2 signal, 3 power) with PE
• Rated currents/voltages: Signal 10 A / 63 V AC/DC; Power 16 A / up to 630 V AC/DC
• Protection: IP65 / IP67; Mating cycles ≥ 100
• Operating temperature: -30 … +90 °C
• Includes lock nut; tightening torque 2 Nm
