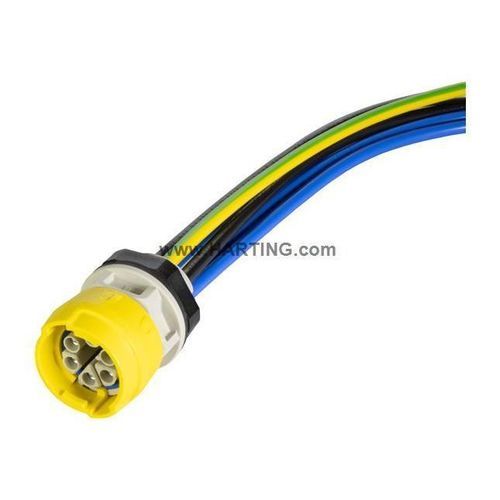

Panel feedthrough S15_PFT_STR-FM_DC_F_6P

front panelmultiple-elementIP65

Product name
S15_PFT_STR-FM_DC_F_6P_2.5mm²_0.25m

Article number
97 00 000 1408

Labels
New

Overview

• Panel feed-through connector with conductors
• Front mounting
• Conductor length: 0.25 m (25 cm)
• 5 contacts: 3 signal + 2 power

Identification / Classification
Category: Connectors
Series: Circular connectors Size 15
Element: Panel feed-through
Specification: With conductors; for front mounting

Version
Gender: Female
Shielding: Unshielded
Number of contacts: 5 (3 signal contacts, 2 power contacts)
PE contact: Yes
Locking type: Toggle locking
Pack contents: incl. lock nut

Technical characteristics

• Conductor cross-section: 2.5 mm² (AWG 14)
• Rated current (signal): 4 A
• Rated voltage (signal): 48 V AC/DC
• Rated impulse voltage (signal): 0.8 kV
• Rated current (power): 20 A
• Rated voltage (power): 48 V AC/DC
• Rated voltage conductor-conductor (power): 48 V
• Pollution degree: 3
• Tightening torque (lock nut): 2 Nm
• Limiting temperature: -30 … +90 °C
• Mating cycles: ≥ 100
• Degree of protection (IEC 60529): IP65 / IP67
• Isolation group: I (CTI ≥ 600)
• Panel thickness: 1 … 10 mm

Material / Surface
Insert: Polyamide (PA)
Contacts: Copper alloy, silver plated
Hood / housing: Polyamide (PA)
Material flammability class (UL 94): V-0

Compliance / Environmental
RoHS: compliant with exemption
RoHS exemptions: 6(c) copper alloy containing up to 4% lead by weight
ELV status: compliant with exemption
China RoHS: 50
REACH Annex XVII: Not contained
REACH Annex XIV: Not contained
REACH SVHC: Contains lead
California Proposition 65: Contains lead

Specifications and approvals
IEC 61076-2-116
IEC 60228
IEC 61984
VDE 0482-332-1-2
IEC 60332-1-2 (flame retardancy)
UL 2556 Sec. 9.4 (VW-1)
UL 2556 Sec. 9.3 (FT1)

Commercial data
Packaging size: 1
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 Sensor-actuator connector chassis (sensor/actuator technology)
UNSPSC 24.0: 39121413

Key specifications

• Category: Connectors — Circular connectors Size 15
• Element: Panel feed-through, front mounting, with conductors
• Contacts: 5 (3 signal, 2 power) with PE contact
• Signal rating: 4 A / 48 V AC/DC / impulse 0.8 kV
• Power rating: 20 A / 48 V AC/DC / impulse 0.8 kV
• Conductor cross-section: 2.5 mm² (AWG 14), conductor length 0.25 m
• Degree of protection: IP65 / IP67
• Temperature range: -30 … +90 °C
• Materials: polyamide housing, copper alloy contacts silver plated
• Compliance: see compliance section
