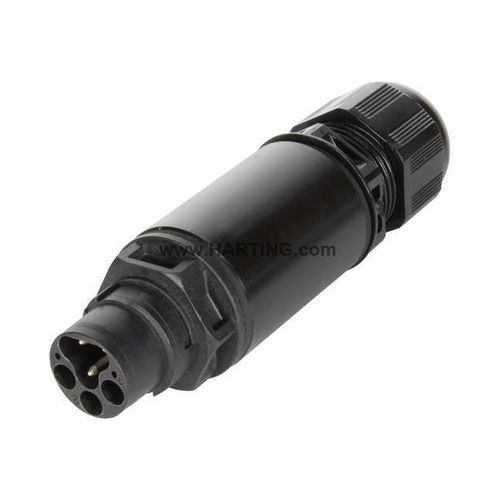

Data connector S15_PFT_STR-FM_AC_M_CRT_w/o-contactselectrical power supplycircularcrimp
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- crimp, male
- Electrical characteristics
- 6-pole
- Material
- polyamide
- Protection class
- IP65, IP67
- Primary current
Min.: 10 A
Max.: 16 A
- Voltage
Min.: 63 V
Max.: 600 V
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)
Description
Product summary
Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Cable connector
Model/reference: S15_CC_STR_AC_CRT_M_6P_6-13mm
Version
Technical characteristics
Material properties
Commercial data
- Circular cable connector, male, crimp termination
- 6 contacts (3 power, 2 signal, 1 PE)
- Insert material: polyamide (PA), black
- Conductor cross-section: 0.14–2.5 mm² (AWG 26–14)
- Clamping range: 6–13 mm
- Degree of protection: IP65 / IP67
- Operating temperature: -30 to +90 °C
Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Cable connector
Model/reference: S15_CC_STR_AC_CRT_M_6P_6-13mm
Version
- Termination method: Crimp termination
- Gender: Male
- Shielding: Unshielded
- Number of contacts: 6 (3 power, 2 signal, 1 PE)
- Locking type: Toggle locking
Technical characteristics
- Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
- Rated current (signal): 10 A; Rated voltage (signal): 63 V AC/DC
- Rated current (power): 16 A; Rated voltage (power): 600 V AC
- Rated impulse voltage: signal 1.5 kV; power 6 kV
- Pollution degree: 3
- Mating cycles: ≥ 100
- Isolation group: I (CTI ≥ 600)
Material properties
- Insert material: Polyamide (PA), black
- Hood/housing colour: Black
- Material flammability class (UL 94): HB
- Environmental compliance: RoHS compliant, ELV compliant, China RoHS: e, REACH Annex XIV/XVII/SVHC: not contained
Commercial data
- Packaging size: 1
- Country of origin: Romania
- European customs tariff number: 85366990
- eCl@ss: 27440115 Circular connector (set)
