Panel feedthrough S15_PFT_STR-FM_AC_F_CRT_w/o-contacts
front panelmultiple-elementIP65

Panel feedthrough - S15_PFT_STR-FM_AC_F_CRT_w/o-contacts - HARTING - front panel / multiple-element / IP65

Add to favorites

Compare this product

Characteristics

Product applications: for panels, front panel
Configuration: multiple-element
Protection level: IP67, IP65

Description

Product overview

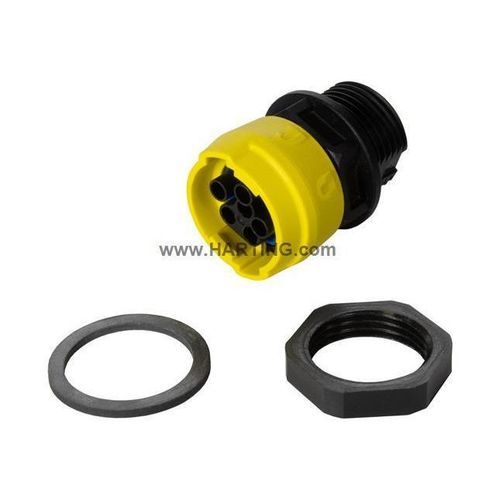

Panel feed-through for front mounting. Image is for illustration purposes only. Please refer to product description.

Identification

Category: Connectors
Series: Circular connectors Size 15
Element: Panel feed-through
Specification: for front mounting

Version

Gender: Female
Shielding: Unshielded
Number of contacts: 5 (2 signal, 3 power)
PE contact: Yes
Locking type: Toggle locking
Pack contents: incl. lock nut
Details: Crimp contacts must be ordered separately. Housing wall thickness: max. 5 mm with lock nut; >5 mm only with earthed metal housing or plastic housing.

Technical characteristics

Conductor cross-section: 0.14 ... 2.5 mm² (AWG 26 ... AWG 14)
Rated current (signal): 10 A; Rated voltage (signal): 63 V AC/DC; Rated impulse voltage (signal): 1.5 kV; Pollution degree (signal): 3
Rated current (power): 16 A; Rated voltage conductor-earth (power): 450 V AC / 600 V DC; Rated voltage conductor-conductor (power): 630 V AC/DC; Rated impulse voltage (power): 6 kV; Pollution degree (power): 3
Tightening torque (lock nut): 2 Nm
Limiting temperature: -30 ... +90 °C
Mating cycles: ≥ 100
Degree of protection (IEC 60529): IP65 / IP67
Isolation group: I (CTI ≥ 600)
Panel thickness: 1 ... 10 mm

Material properties

Insert material: Polyamide (PA), colour: black
Hood/housing material: Polyamide (PA)
Flammability (UL 94): V-0
RoHS: compliant; ELV: compliant; China RoHS: e
REACH / SVHC / Annex XIV / Annex XVII: Not contained
California Proposition 65: Not contained

Specifications and approvals

IEC 61076-2-116
IEC 61984

Commercial data

Packaging size: 25
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440103 (Sensor-actuator connector chassis)
UNSPSC 24.0: 39121413

Key features

Type: Panel feed-through, front mounting
Contacts: 5 (2 signal, 3 power) with PE contact
Locking: Toggle locking; incl. lock nut
Electrical ratings (signal): 10 A / 63 V AC/DC; impulse 1.5 kV
Electrical ratings (power): 16 A; 450 V AC (conductor-earth), 600 V DC (conductor-earth), 630 V AC/DC (conductor-conductor); impulse 6 kV
Protection: IP65 / IP67
Operating temperature: -30 ... +90 °C
Conductor range: 0.14 ... 2.5 mm² (AWG 26 ... 14)
Material: Polyamide (PA), insert black, UL94 V-0
Compliance: RoHS, ELV, REACH/California Prop 65 – not contained
