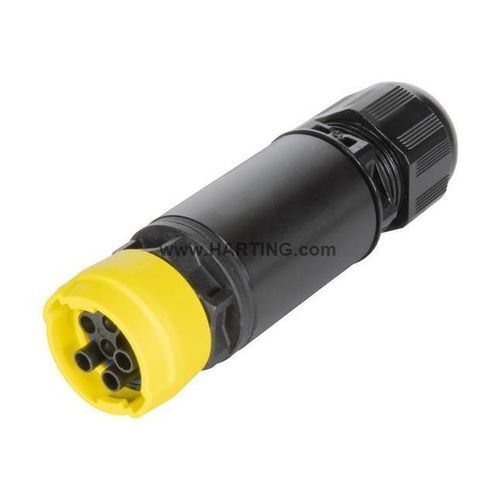

Data connector S15_CC_STR_AC_CRT_F_6P_6-13

electrical power supplywire-to-wirecircular

Product overview

• Cable connector, female, crimp termination
• Polyamide (PA) insert, black hood/housing
• 6 contacts: 2 signal, 3 power, 1 PE contact
• Conductor cross-section: 0.14–2.5 mm² (AWG 26–14)
• Clamping range: 6–13 mm
• Degree of protection: IP65 / IP67

Identification
Category: Connectors
Series: Circular connectors Size 15
Element: Cable connector
Article No.: 97 00 000 1411

Version
Termination method: Crimp termination
Gender: Female
Shielding: Unshielded
Number of contacts: 6 (signal: 2; power: 3; special: 1x PE)

Technical characteristics
Conductor cross-section: 0.14–2.5 mm²
Conductor cross-section (AWG): AWG 26–14
Rated current (signal): 10 A
Rated voltage (signal): 63 V AC/DC
Rated impulse voltage (signal): 1.5 kV
Pollution degree (signal): 3
Rated current (power): 16 A
Rated voltage (power): 600 V AC
Rated impulse voltage (power): 6 kV
Pollution degree (power): 3
Limiting temperature: -30 … +90 °C
Mating cycles: ≥ 100
Degree of protection acc. to IEC 60529: IP65 / IP67
Clamping range: 6–13 mm
Isolation group: I (CTI ≥ 600)

Material properties
Insert material: Polyamide (PA), black
Hood/housing colour: Black
Flammability class (UL 94): HB
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII/Annex XIV/SVHC: Not contained
California Proposition 65: Not contained

Specifications and approvals
Standards: IEC 61076-2-116; IEC 60228; IEC 61984

Commercial data
Packaging size: 1
Country of origin: Romania
European customs tariff number: 85366990
eCl@ss: 27440115 Circular connector (set)

Technical summary

• Type: Cable connector, female, crimp termination
• Contacts total: 6 (2 signal, 3 power, 1 PE)
• Conductor cross-section: 0.14–2.5 mm² (AWG 26–14)
• Rated currents: signal 10 A, power 16 A
• Rated voltages: signal 63 V AC/DC, power 600 V AC
• Rated impulse voltages: signal 1.5 kV, power 6 kV
• Degree of protection: IP65 / IP67
• Clamping range: 6–13 mm
• Operating temperature: -30 … +90 °C
• Material insert: Polyamide (PA), black
• Standards: IEC 61076-2-116; IEC 60228; IEC 61984
